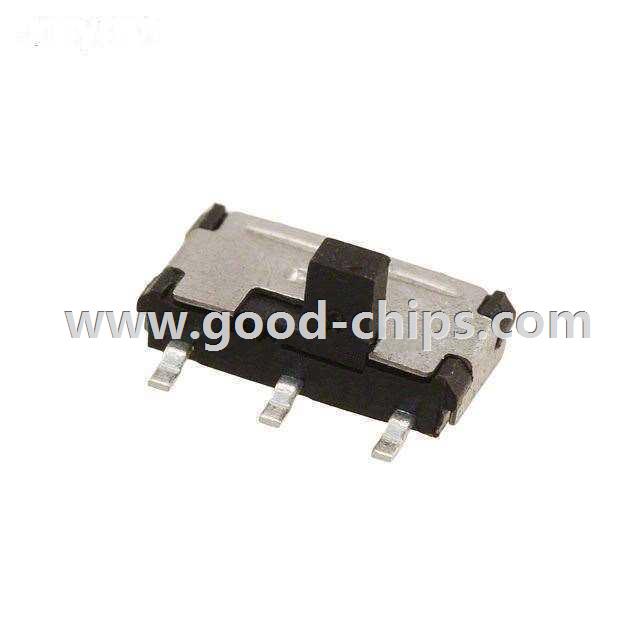

Manufacturer Part Number: | EG1390B |
---|---|
Manufacturer: | E-Switch |
Product Category: | Slide Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Slide Switch DPDT Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EG1390B Datasheet |
Internal Part Number | 898-EG1390B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | EG1390 Series RoHS Cert of Compliance | |
3D Model | EG1390B.stp | |
Category | Switches | |
Family | Slide Switches | |
Manufacturer | E-Switch | |
Series | EG | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Circuit | DPDT | |
Contact Timing | Not Specified | |
Switch Function | On-On | |
Current Rating | 300mA (DC) | |
Voltage Rating - AC | - | |
Voltage Rating - DC | 4V | |
Actuator Type | Standard | |
Actuator Length | 2.00mm | |
Contact Material | - | |
Contact Finish | - | |
Mounting Type | Surface Mount | |
Termination Style | Gull Wing | |
Features | - | |
Actuator Material | - | |
Switch Travel | 1.50mm | |
Operating Temperature | -10°C ~ 60°C | |
Mechanical Life | 10,000 Cycles | |
Electrical Life | 10,000 Cycles | |
Operating Force | 200gf | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EG1390B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EG1390B is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of EG1390B is new and unused, you can buy EG1390B E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EG1390B.
