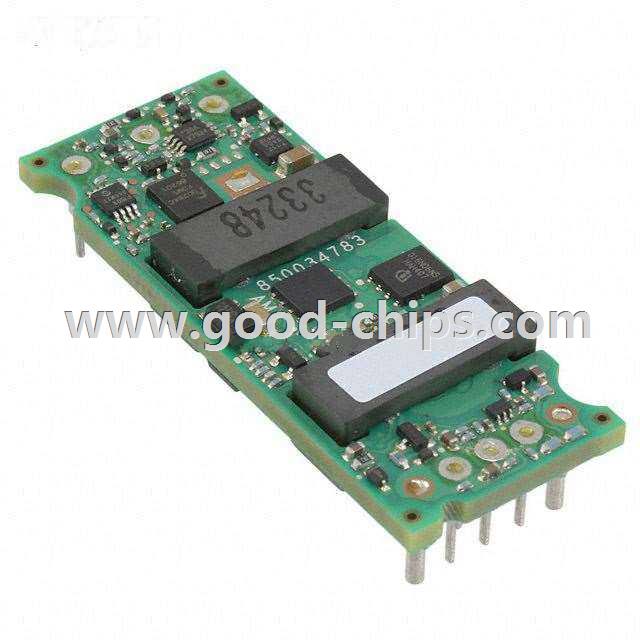

| Manufacturer Part Number: | EHHD024A0A41Z |
|---|---|
| Manufacturer: | GE Critical Power |
| Product Category: | DC DC Converters |
| Available Quantity: | 9040 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERTER 5V 120W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EHHD024A0A41Z Datasheet |
| Internal Part Number | 898-EHHD024A0A41Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Hammerhead™ Series | |
| Manufacturer Product Page | Power Module Wizard™ | |
| Online Catalog | Hammerhead™ EHHD024A0A Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | GE Critical Power | |
| Series | Hammerhead™ EHHD024A0A | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 18V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 24A | |
| Power (Watts) - Manufacture Series | 120W | |
| Voltage - Isolation | 2.25kV (2250V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP Module, 1/8 Brick | |
| Size / Dimension | 2.30" L x 0.90" W x 0.35" H (58.4mm x 22.8mm x 8.9mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 92% | |
| Power (Watts) - Max | 120W | |
| Standard Package | 36 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EHHD024A0A41Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EHHD024A0A41Z is in stock for immediate shipping now. We are the distributor of GE Critical Power all series components. The condition of EHHD024A0A41Z is new and unused, you can buy EHHD024A0A41Z GE Critical Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EHHD024A0A41Z.
