| Manufacturer Part Number: | EK01 |
|---|---|
| Manufacturer: | Apex Microtechnology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SA01 Apex Precision Power® Series Power Management, H-Bridge Driver (Internal FET) Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EK01 Datasheet |
| Internal Part Number | 898-EK01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Analog Portfolio | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Apex Microtechnology | |
| Series | Apex Precision Power® | |
| Part Status | Active | |
| Main Purpose | Power Management, H-Bridge Driver (Internal FET) | |
| Embedded | No | |
| Utilized IC / Part | SA01 | |
| Primary Attributes | 16V ~ 100V Supply, 20A Output | |
| Secondary Attributes | Assembly Required | |

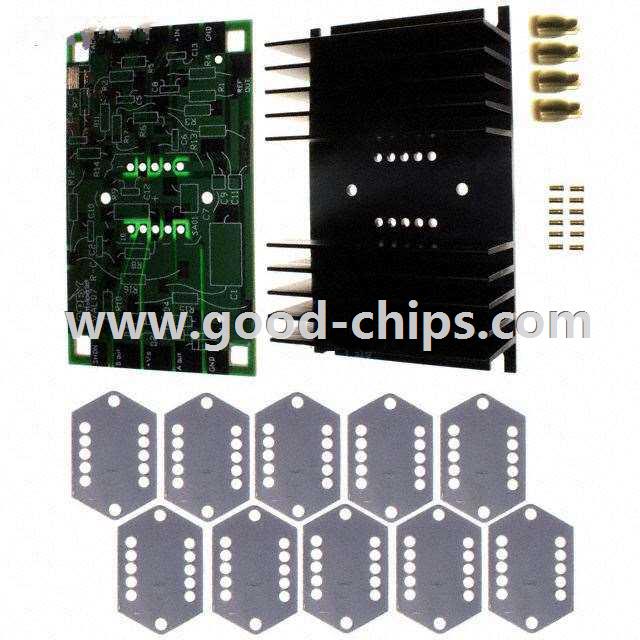

| Supplied Contents | Bare Board, Components, Heat Sink | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EK01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EK01 is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of EK01 is new and unused, you can buy EK01 Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EK01.
