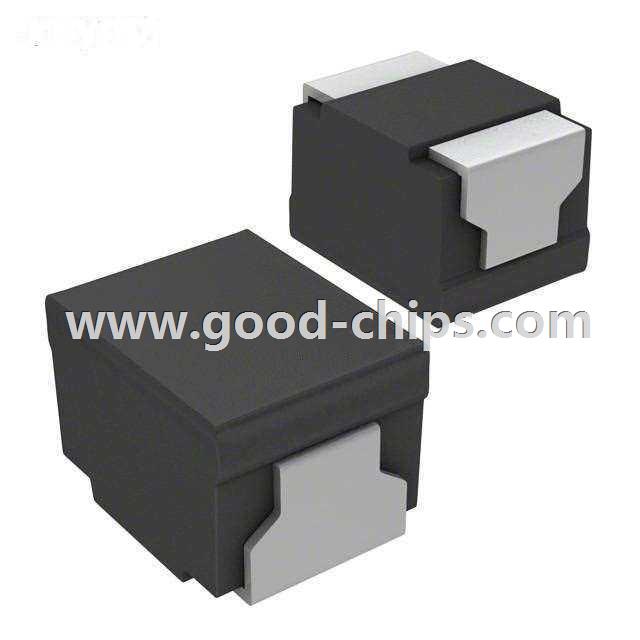

.jpg)
| Manufacturer Part Number: | ELJ-DA470JF |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9217 Pieces |
| Unit Price: | Quote by Email |
| Description: | 47µH Unshielded Wirewound Inductor 105mA 5.9 Ohm Max 1210 (3225 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ELJ-DA470JF Datasheet |
| Internal Part Number | 898-ELJ-DA470JF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | ELJ-xA,B,C,D Series 16/Dec/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Panasonic Electronic Components | |
| Series | DA | |
| Packaging | Cut Tape (CT) | |
| Part Status | Obsolete | |
| Type | Wirewound | |
| Material - Core | - | |
| Inductance | 47µH | |
| Tolerance | ±5% | |
| Current Rating | 105mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 5.9 Ohm Max | |
| Q @ Freq | 21 @ 2.52MHz | |
| Frequency - Self Resonant | 10MHz | |
| Ratings | - | |
| Operating Temperature | -20°C ~ 85°C | |
| Frequency - Test | 2.52MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1210 (3225 Metric) | |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
| Height - Seated (Max) | 0.094" (2.40mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ELJ-DA470JF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ELJ-DA470JF is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of ELJ-DA470JF is new and unused, you can buy ELJ-DA470JF Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ELJ-DA470JF.
