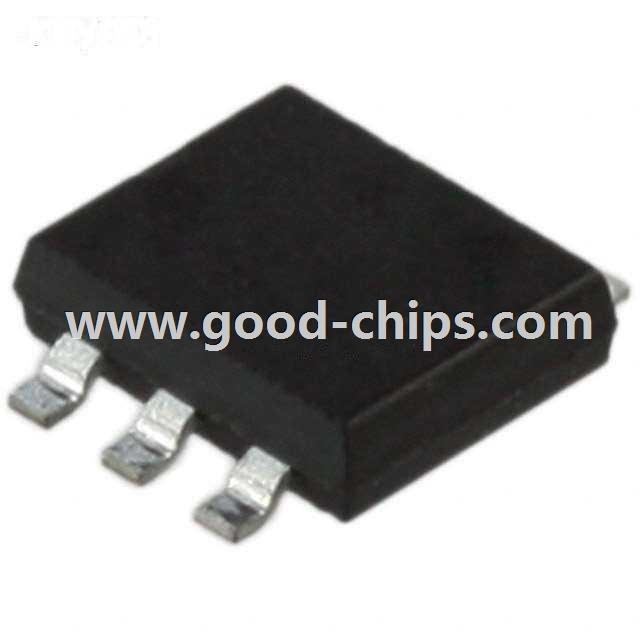

Manufacturer Part Number: | EM3242 |
---|---|
Manufacturer: | AKM Semiconductor Inc. |
Product Category: | Position Sensors - Angle, Linear Position Measuring |
Available Quantity: | 19010 Pieces |
Unit Price: | Quote by Email |
Description: | Hall Effect Sensor Angle External Magnet, Not Included SMD (SMT) Tab |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EM3242 Datasheet |
Internal Part Number | 898-EM3242 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | EM3242 | |
Category | Sensors, Transducers | |
Family | Position Sensors - Angle, Linear Position Measuring | |
Manufacturer | AKM Semiconductor Inc. | |
Series | - | |
Part Status | Active | |
For Measuring | Angle | |
Technology | Hall Effect | |
Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous | |
Linear Range | - | |
Output | Analog Voltage | |
Output Signal | - | |
Actuator Type | External Magnet, Not Included | |
Linearity | - | |
Resistance (Ohms) | - | |
Resistance Tolerance | - | |
Voltage - Supply | 2.7 V ~ 3.3 V | |
Mounting Type | Surface Mount | |
Termination Style | SMD (SMT) Tab | |
Operating Temperature | -30°C ~ 85°C | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EM3242 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EM3242 is in stock for immediate shipping now. We are the distributor of AKM Semiconductor Inc. all series components. The condition of EM3242 is new and unused, you can buy EM3242 AKM Semiconductor Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EM3242.
