| Manufacturer Part Number: | EMI220T-RC |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |

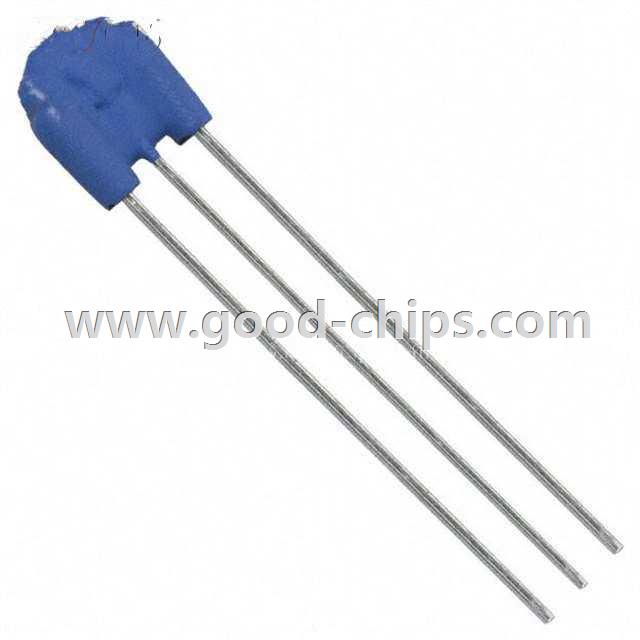

| Description: | LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel R = 0.05 Ohms, C = 22pF 5A Radial - 3 Leads |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EMI220T-RC Datasheet |
| Internal Part Number | 898-EMI220T-RC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | EMI-T.stp | |
| Online Catalog | EMIT Series | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | Bourns Inc. | |
| Series | EMIT | |
| Packaging | Tape & Box (TB) | |
| Part Status | Active | |
| Type | Low Pass | |
| Filter Order | 3rd | |
| Technology | LC (T-Type) | |
| Number of Channels | 1 | |
| Center / Cutoff Frequency | - | |
| Attenuation Value | 25dB @ 800MHz ~ 1GHz | |
| Resistance - Channel (Ohms) | 0.05 | |
| Current | 5A | |
| Values | R = 0.05 Ohms, C = 22pF | |
| ESD Protection | No | |
| Operating Temperature | -25°C ~ 85°C | |
| Applications | General Purpose | |
| Voltage - Rated | 50V | |
| Mounting Type | Through Hole | |
| Package / Case | Radial - 3 Leads | |
| Size / Dimension | 0.354" L x 0.126" W (9.00mm x 3.20mm) | |
| Height | 0.315" (8.00mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EMI220T-RC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EMI220T-RC is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of EMI220T-RC is new and unused, you can buy EMI220T-RC Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EMI220T-RC.
