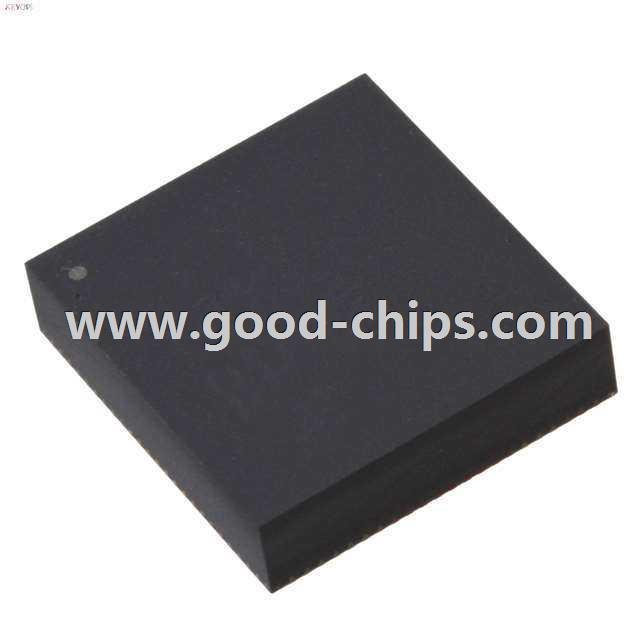

Manufacturer Part Number: | EN23F2QI |
---|---|
Manufacturer: | Altera |
Product Category: | DC DC Converters |
Available Quantity: | 9260 Pieces |
Unit Price: | Quote by Email |
Description: | DC/DC CONVERTER 0.75-3.3V 30W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | EN23F2QI Datasheet |
Internal Part Number | 898-EN23F2QI | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Solder paste 12/May/2016 | |
PCN Packaging | Label Chg 15/Jan/2016 | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Altera | |
Series | Enpirion® 2300 | |
Packaging | Tape & Reel (TR) | |
Part Status | Not For New Designs | |
Type | Non-Isolated PoL Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 4.5V | |
Voltage - Input (Max) | 13.2V | |
Voltage - Output 1 | 0.75 ~ 3.3 V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 15A | |
Power (Watts) - Manufacture Series | - | |
Voltage - Isolation | - | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, OTP | |
Mounting Type | Surface Mount | |
Package / Case | 92-QFN | |
Size / Dimension | 0.51" L x 0.47" W x 0.12" H (13.0mm x 12.0mm x 3.0mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 91% | |
Power (Watts) - Max | - | |
Standard Package | 250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | EN23F2QI | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
EN23F2QI is in stock for immediate shipping now. We are the distributor of Altera all series components. The condition of EN23F2QI is new and unused, you can buy EN23F2QI Altera with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EN23F2QI.
