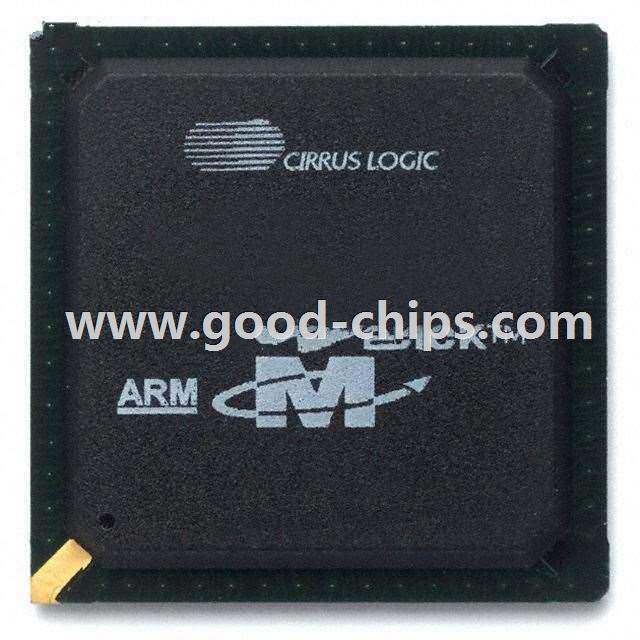

| Manufacturer Part Number: | EP7309-CB |
|---|---|
| Manufacturer: | Cirrus Logic Inc. |
| Product Category: | Embedded - Microprocessors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ARM7TDMI Microprocessor IC EP7 1 Core, 32-Bit 74MHz 256-PBGA (17x17) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EP7309-CB Datasheet |
| Internal Part Number | 898-EP7309-CB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microprocessors | |
| Manufacturer | Cirrus Logic Inc. | |
| Series | EP7 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Core Processor | ARM7TDMI | |
| Number of Cores/Bus Width | 1 Core, 32-Bit | |
| Speed | 74MHz | |
| Co-Processors/DSP | - | |
| RAM Controllers | - | |
| Graphics Acceleration | No | |
| Display & Interface Controllers | Keypad, LCD, Touchscreen | |
| Ethernet | - | |
| SATA | - | |
| USB | - | |
| Voltage - I/O | 2.5V, 2.7V, 3.0V, 3.3V | |
| Operating Temperature | 0°C ~ 70°C (TA) | |
| Security Features | Hardware ID | |
| Package / Case | 256-LFBGA | |
| Supplier Device Package | 256-PBGA (17x17) | |
| Additional Interfaces | DAI, IrDA, SSI, UART | |
| Standard Package | 90 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EP7309-CB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EP7309-CB is in stock for immediate shipping now. We are the distributor of Cirrus Logic Inc. all series components. The condition of EP7309-CB is new and unused, you can buy EP7309-CB Cirrus Logic Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EP7309-CB.
