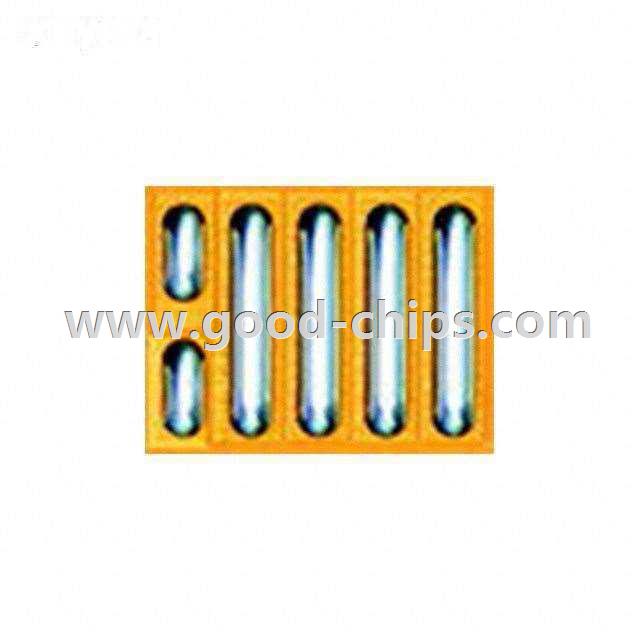

| Manufacturer Part Number: | EPC2016C |
|---|---|
| Manufacturer: | EPC |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS GAN 100V 18A BUMPED DIE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EPC2016C Datasheet |
| Internal Part Number | 898-EPC2016C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Assembling eGaN® FETs Die Attach Procedure Die Removal Procedure Using eGaN® FETs | |
| Featured Product | EPC Low Voltage eGaN® FETs | |
| Reference Design Library | EPC9106: 250W(x2) @ 4O, ± 27V in, Class D | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | EPC | |
| Series | eGaN® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | GaNFET N-Channel, Gallium Nitride | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 18A (Ta) | |
| Rds On (Max) @ Id, Vgs | 16 mOhm @ 11A, 5V | |
| Vgs(th) (Max) @ Id | 2.5V @ 3mA | |
| Gate Charge (Qg) @ Vgs | 4.5nC @ 5V | |
| Input Capacitance (Ciss) @ Vds | 420pF @ 50V | |
| Power - Max | - | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | Die | |
| Supplier Device Package | Die | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EPC2016C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EPC2016C is in stock for immediate shipping now. We are the distributor of EPC all series components. The condition of EPC2016C is new and unused, you can buy EPC2016C EPC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EPC2016C.
