Stocking distributor of Electronic Components
Email: [email protected]

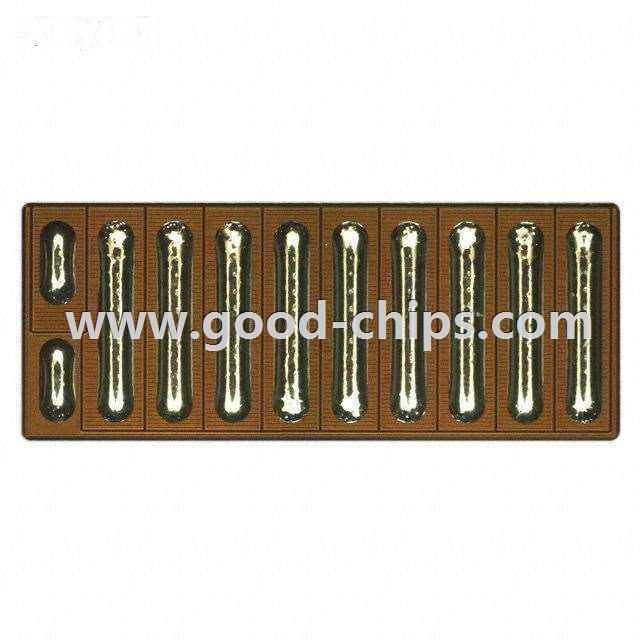

| Manufacturer Part Number: | EPC2801 |
|---|---|
| Manufacturer: | EPC |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9310 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS GAN 100V 25A BUMPED DIE |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EPC2801 Datasheet |
| Internal Part Number | 898-EPC2801 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | EPC2yyy Family Process Change 12/Dec/2013 | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | EPC | |
| Series | eGaN® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | GaNFET N-Channel, Gallium Nitride | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 25A (Ta) | |
| Rds On (Max) @ Id, Vgs | 7 mOhm @ 25A, 5V | |
| Vgs(th) (Max) @ Id | 2.5V @ 5mA | |
| Gate Charge (Qg) @ Vgs | 10nC @ 5V | |
| Input Capacitance (Ciss) @ Vds | 950pF @ 50V | |
| Power - Max | - | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | Die | |
| Supplier Device Package | Die | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EPC2801 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EPC2801 is in stock for immediate shipping now. We are the distributor of EPC all series components. The condition of EPC2801 is new and unused, you can buy EPC2801 EPC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EPC2801.
