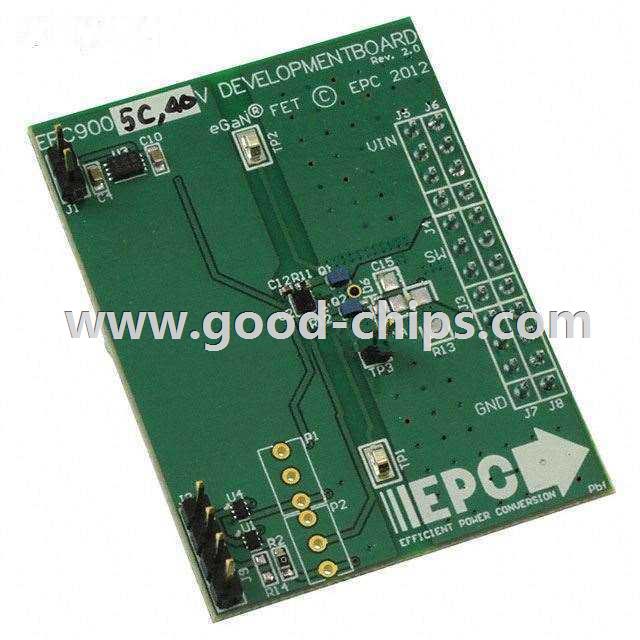

| Manufacturer Part Number: | EPC9005C |
|---|---|
| Manufacturer: | EPC |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | EPC2014C eGaN® Series Power Management, Half H-Bridge Driver (External FET) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EPC9005C Datasheet |
| Internal Part Number | 898-EPC9005C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Assembling eGaN® FETs Die Attach Procedure Die Removal Procedure Using eGaN® FETs | |
| Design Resources | EPC9005C Schematic EPC9005C Dev Brd Gerbers EPC9005C BOM Development Tool Selector | |
| Online Catalog | EPC2014 Development Boards EPC9005, EPC9111 and EPC9005C | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | EPC | |
| Series | eGaN® | |
| Part Status | Active | |
| Main Purpose | Power Management, Half H-Bridge Driver (External FET) | |
| Embedded | No | |
| Utilized IC / Part | EPC2014C | |
| Primary Attributes | - | |
| Secondary Attributes | - | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EPC9005C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EPC9005C is in stock for immediate shipping now. We are the distributor of EPC all series components. The condition of EPC9005C is new and unused, you can buy EPC9005C EPC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EPC9005C.
