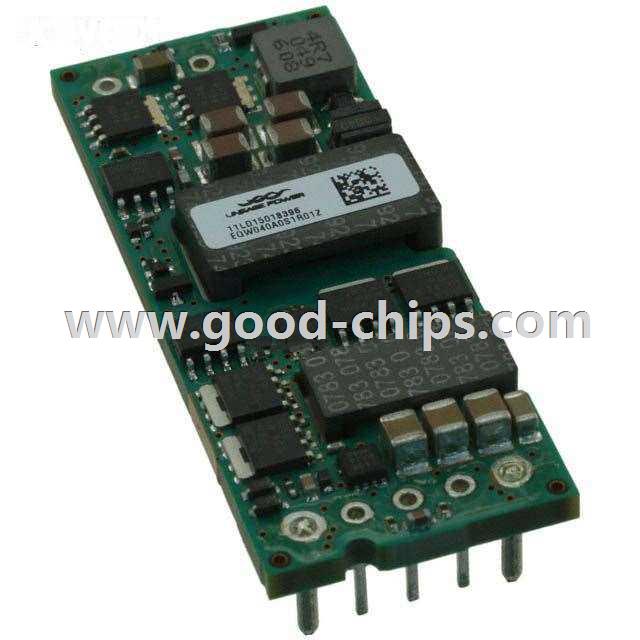

| Manufacturer Part Number: | EQW040A0S1R01Z |
|---|---|
| Manufacturer: | GE Critical Power |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERTER DC/DC 1V 40W OUT T/H |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EQW040A0S1R01Z Datasheet |
| Internal Part Number | 898-EQW040A0S1R01Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Manufacturer Product Page | Power Module Wizard™ | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | GE Critical Power | |
| Series | EQW040 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 36V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 1 ~ 12 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 40A | |
| Power (Watts) - Manufacture Series | 40W | |
| Voltage - Isolation | 1.5kV (1500V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP Module, 1/8 Brick | |
| Size / Dimension | 2.28" L x 0.90" W x 0.34" H (57.9mm x 22.8mm x 8.5mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 83.2% | |
| Power (Watts) - Max | 40W | |
| Standard Package | 36 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EQW040A0S1R01Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EQW040A0S1R01Z is in stock for immediate shipping now. We are the distributor of GE Critical Power all series components. The condition of EQW040A0S1R01Z is new and unused, you can buy EQW040A0S1R01Z GE Critical Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EQW040A0S1R01Z.
