| Manufacturer Part Number: | ER1537-28JS |
|---|---|
| Manufacturer: | API Delevan Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9260 Pieces |
| Unit Price: | Quote by Email |

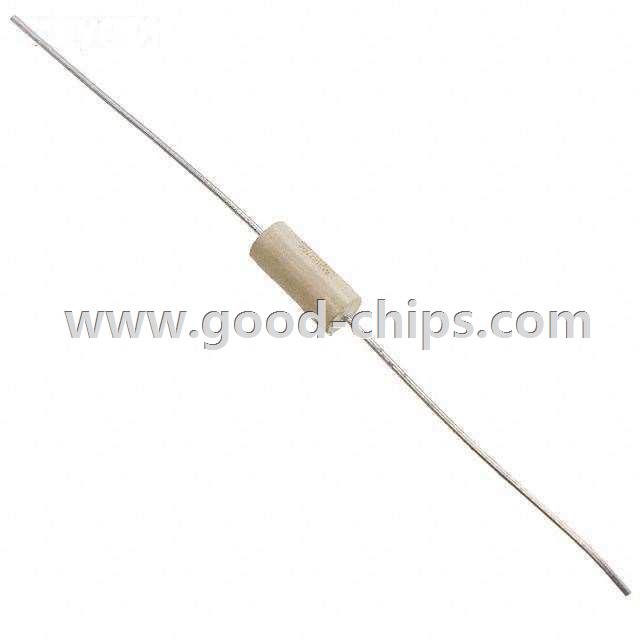

| Description: | 4.7µH Unshielded Inductor 260mA 2.6 Ohm Max Axial |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ER1537-28JS Datasheet |
| Internal Part Number | 898-ER1537-28JS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Military, MIL-PRF-39010/06, ER1537 Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | API Delevan Inc. | |
| Series | Military, MIL-PRF-39010/06, ER1537 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | - | |
| Material - Core | Phenolic | |
| Inductance | 4.7µH | |
| Tolerance | ±5% | |
| Current Rating | 260mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 2.6 Ohm Max | |
| Q @ Freq | 33 @ 7.9MHz | |
| Frequency - Self Resonant | 90MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 7.9MHz | |
| Mounting Type | Through Hole | |
| Package / Case | Axial | |
| Size / Dimension | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | |
| Height - Seated (Max) | - | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ER1537-28JS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ER1537-28JS is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of ER1537-28JS is new and unused, you can buy ER1537-28JS API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ER1537-28JS.
