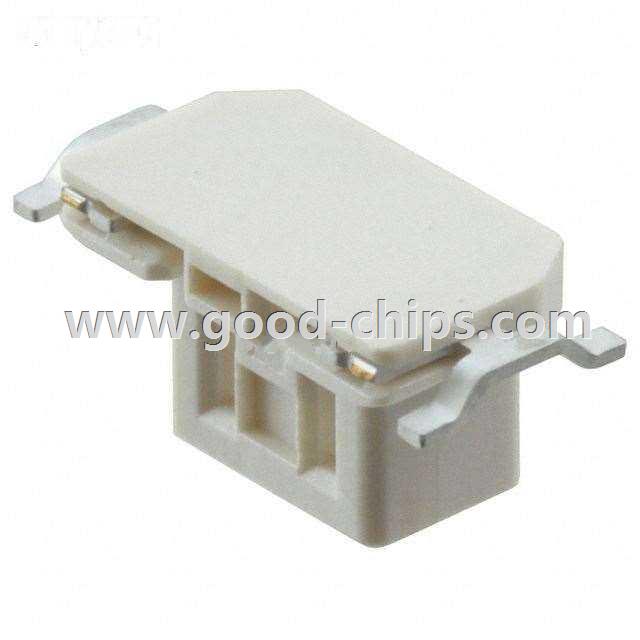

| Manufacturer Part Number: | ES3B002WF2R1000 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Solid State Lighting Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SSL Connector 2 Position Receptacle Board to Board - Card Edge 0.118" (3.00mm) Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ES3B002WF2R1000 Datasheet |
| Internal Part Number | 898-ES3B002WF2R1000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ES5 Series One-Position Board-to-Cable Connector for Lighting | |
| Design Resources | Lighting Product Selector | |
| Featured Product | LED Lighting Internal Connectors | |
| Online Catalog | ES3 Series | |
| Category | Connectors, Interconnects | |
| Family | Solid State Lighting Connectors | |
| Manufacturer | JAE Electronics | |
| Series | ES3 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Style | Board to Board - Card Edge | |
| Connector Type | Receptacle | |
| Number of Positions | 2 | |
| Mounting Type | Surface Mount, Bottom Entry, Through Board | |
| Termination | Solder | |
| Pitch | 0.118" (3.00mm) | |
| Fastening Type | - | |
| Features | - | |
| Housing Color | White | |
| Wire Gauge | - | |
| Contact Material | Copper Alloy | |
| Contact Finish | Tin | |
| Housing Material | Liquid Crystal Polymer (LCP) | |
| Operating Temperature | -40°C ~ 105°C | |
| Voltage Rating | 200V | |
| Current Rating | 2A | |
| Ingress Protection | - | |
| Mating Cycles | 20 | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ES3B002WF2R1000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ES3B002WF2R1000 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of ES3B002WF2R1000 is new and unused, you can buy ES3B002WF2R1000 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ES3B002WF2R1000.
