| Manufacturer Part Number: | ES3S002SZA |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Solid State Lighting Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

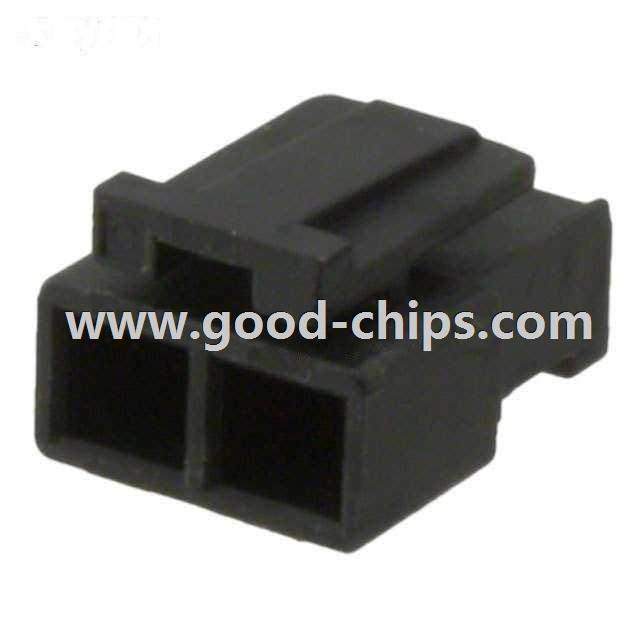

| Description: | SSL Connector 2 Position Receptacle Housing for Socket Contact Board to Cable/Wire 0.118" (3.00mm) Crimp |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ES3S002SZA Datasheet |
| Internal Part Number | 898-ES3S002SZA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ES5 Series One-Position Board-to-Cable Connector for Lighting | |
| Design Resources | Lighting Product Selector | |
| Featured Product | LED Lighting Internal Connectors | |
| Online Catalog | ES3 Series | |
| Category | Connectors, Interconnects | |
| Family | Solid State Lighting Connectors | |
| Manufacturer | JAE Electronics | |
| Series | ES3 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Style | Board to Cable/Wire | |
| Connector Type | Receptacle Housing for Socket Contact | |
| Number of Positions | 2 | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Pitch | 0.118" (3.00mm) | |
| Fastening Type | Latch Lock | |
| Features | - | |
| Housing Color | Black | |
| Wire Gauge | - | |
| Contact Material | - | |
| Contact Finish | - | |
| Housing Material | Polyamide (PA66), Nylon 6/6 | |
| Operating Temperature | -40°C ~ 105°C | |
| Voltage Rating | 200V | |
| Current Rating | 2A | |
| Ingress Protection | - | |
| Mating Cycles | 20 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ES3S002SZA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ES3S002SZA is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of ES3S002SZA is new and unused, you can buy ES3S002SZA JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ES3S002SZA.
