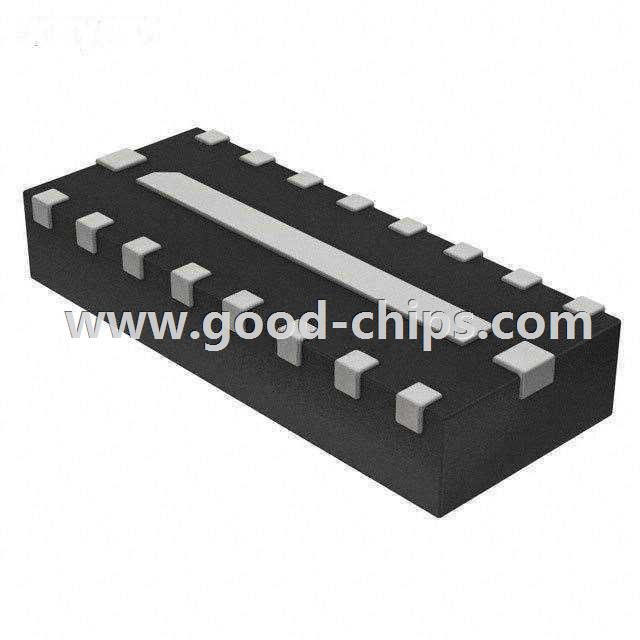

 Exposed Pad.jpg)
| Manufacturer Part Number: | ESD4238MTTAG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 10VC 16WDFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ESD4238MTTAG Datasheet |
| Internal Part Number | 898-ESD4238MTTAG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Reactivation Notice 06/Jan/2012 | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 8 | |
| Voltage - Reverse Standoff (Typ) | - | |
| Voltage - Breakdown (Min) | 5V | |
| Voltage - Clamping (Max) @ Ipp | 10V | |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | |
| Power - Peak Pulse | - | |
| Power Line Protection | Yes | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-WFDFN Exposed Pad | |
| Supplier Device Package | 16-WDFN (4x1.6) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ESD4238MTTAG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ESD4238MTTAG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of ESD4238MTTAG is new and unused, you can buy ESD4238MTTAG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ESD4238MTTAG.
