Manufacturer Part Number: | ESPM03230 |
---|---|
Manufacturer: | Amphenol PCD |
Product Category: | Terminal Blocks - Wire to Board |
Available Quantity: | 9299 Pieces |
Unit Price: | Quote by Email |

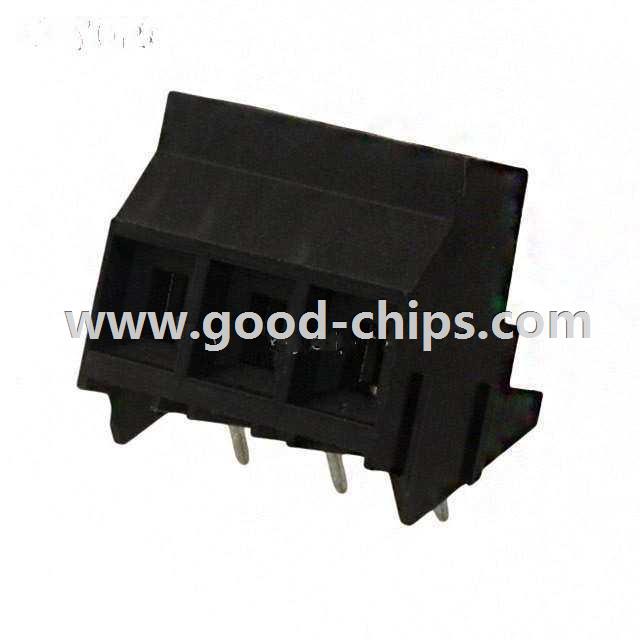

Description: | 3 Position Wire to Board Terminal Block Angled 0.375" (9.53mm) Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ESPM03230 Datasheet |
Internal Part Number | 898-ESPM03230 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | ESPM Series | |
Category | Connectors, Interconnects | |
Family | Terminal Blocks - Wire to Board | |
Manufacturer | Amphenol PCD | |
Series | ESPM | |
Packaging | Tray | |
Part Status | Active | |
Number of Levels | 1 | |
Positions Per Level | 3 | |
Pitch | 0.375" (9.53mm) | |
Mating Orientation | Angled | |
Current | 30A | |
Voltage | 300V | |
Wire Gauge | 10-24 AWG | |
Mounting Type | Through Hole | |
Wire Termination | Screw - Rising Cage Clamp | |
Features | Interlocking (Side) | |
Color | Black | |
Operating Temperature | -40°C ~ 110°C | |
Housing Material | Polyamide (PA66), Nylon 6/6 | |
Contact Material - Plating | Copper Alloy - Tin Plated | |
Clamp Material - Plating | Copper Alloy - Nickel Plated | |
Screw Material - Plating | Copper Alloy - Nickel Plated | |
Torque - Screw | 0.8 Nm (7.1 Lb-In) | |
Screw Thread | - | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ESPM03230 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ESPM03230 is in stock for immediate shipping now. We are the distributor of Amphenol PCD all series components. The condition of ESPM03230 is new and unused, you can buy ESPM03230 Amphenol PCD with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ESPM03230.
