| Manufacturer Part Number: | ESRM22290 |
|---|---|
| Manufacturer: | Amphenol PCD |
| Product Category: | Terminal Blocks - Wire to Board |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

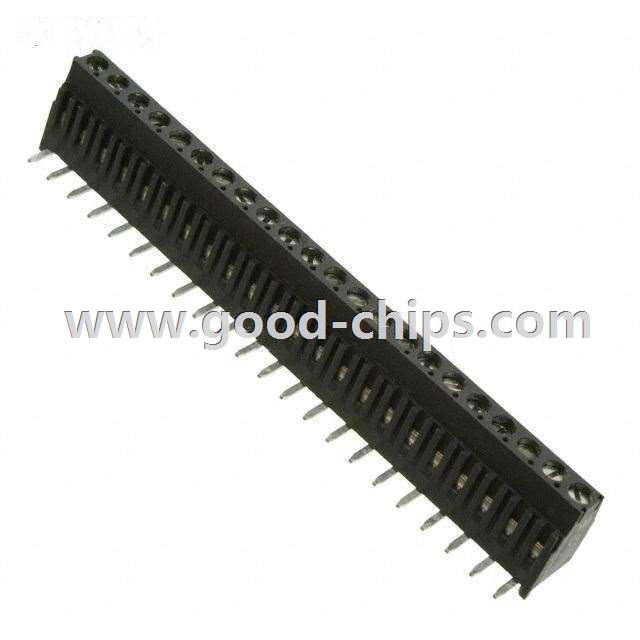

| Description: | 22 Position Wire to Board Terminal Block Vertical with Board 0.150" (3.81mm) Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ESRM22290 Datasheet |
| Internal Part Number | 898-ESRM22290 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Wire to Board | |
| Manufacturer | Amphenol PCD | |
| Series | ESRM | |
| Packaging | Tray | |
| Part Status | Active | |
| Number of Levels | 1 | |
| Positions Per Level | 22 | |
| Pitch | 0.150" (3.81mm) | |
| Mating Orientation | Vertical with Board | |
| Current | 12A | |
| Voltage | 150V | |
| Wire Gauge | 14-30 AWG | |
| Mounting Type | Through Hole | |
| Wire Termination | Screw - Rising Cage Clamp | |
| Features | - | |
| Color | Black | |
| Operating Temperature | -40°C ~ 110°C | |
| Housing Material | Polyamide (PA66), Nylon 6/6 | |
| Contact Material - Plating | Copper Alloy - Tin Plated | |
| Clamp Material - Plating | Copper Alloy - Nickel Plated | |
| Screw Material - Plating | Copper Alloy - Nickel Plated | |
| Torque - Screw | 0.25 Nm (2.2 Lb-In) | |
| Screw Thread | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ESRM22290 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ESRM22290 is in stock for immediate shipping now. We are the distributor of Amphenol PCD all series components. The condition of ESRM22290 is new and unused, you can buy ESRM22290 Amphenol PCD with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ESRM22290.
