| Manufacturer Part Number: | EVAL-AD7982-PMDZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Expansion Boards |
| Available Quantity: | 9016 Pieces |
| Unit Price: | Quote by Email |

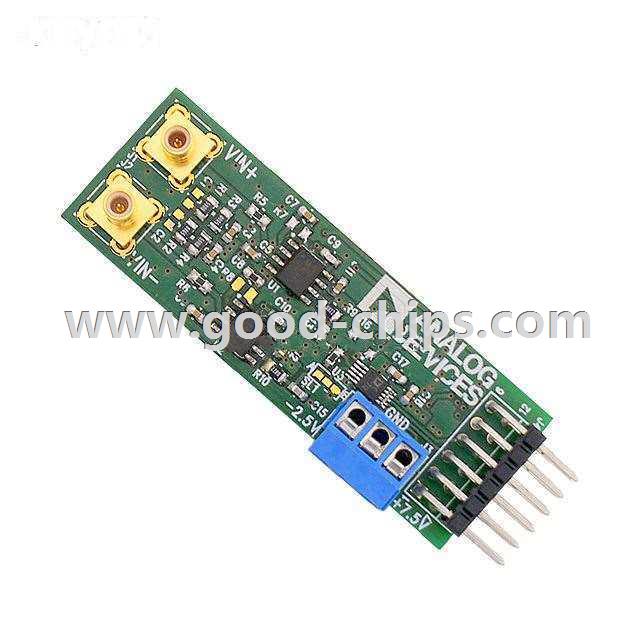

| Description: | AD7982 Analog to Digital Converter (ADC) Data Acquisition Pmod™ Platform Evaluation Expansion Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVAL-AD7982-PMDZ Datasheet |
| Internal Part Number | 898-EVAL-AD7982-PMDZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | AD7982 Evaluation Board PMOD Compatible | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Expansion Boards | |
| Manufacturer | Analog Devices Inc. | |
| Series | PulSAR® | |
| Part Status | Active | |
| Platform | Pmod™ | |
| Type | Data Acquisition | |
| Function | Analog to Digital Converter (ADC) | |
| Utilized IC / Part | AD7982 | |
| Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVAL-AD7982-PMDZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVAL-AD7982-PMDZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL-AD7982-PMDZ is new and unused, you can buy EVAL-AD7982-PMDZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL-AD7982-PMDZ.
