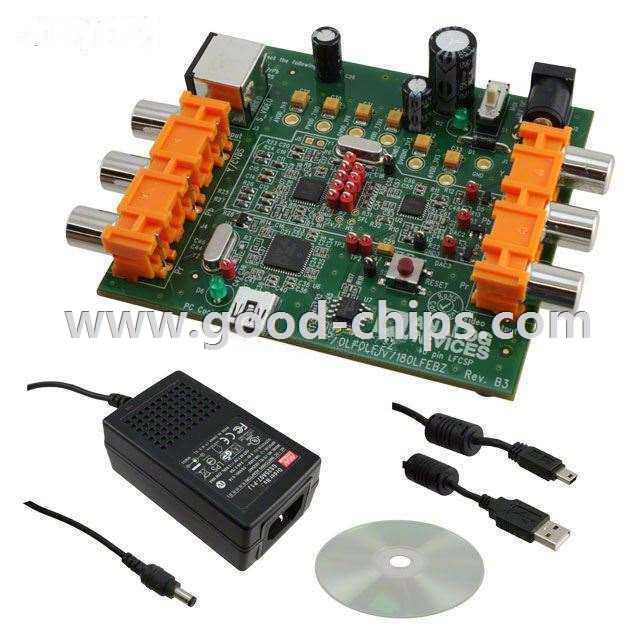

| Manufacturer Part Number: | EVAL-ADV7180LFEBZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | ADV7180 Advantiv® Series Video, SDTV Video Decoder - NTSC, PAL, SECAM Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVAL-ADV7180LFEBZ Datasheet |
| Internal Part Number | 898-EVAL-ADV7180LFEBZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | ADV7180 Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Analog Devices Inc. | |
| Series | Advantiv® | |
| Part Status | Active | |
| Main Purpose | Video, SDTV Video Decoder - NTSC, PAL, SECAM | |
| Embedded | No | |
| Utilized IC / Part | ADV7180 | |
| Primary Attributes | CVBS (Composite), Y/C (S-video), and YPrPb (Component) Inputs | |
| Secondary Attributes | 8-Bit ITU-R BT.656 YCrCb 4:2:2 Output | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVAL-ADV7180LFEBZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVAL-ADV7180LFEBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL-ADV7180LFEBZ is new and unused, you can buy EVAL-ADV7180LFEBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL-ADV7180LFEBZ.
