| Manufacturer Part Number: | EVAL01-HMCAD1511 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |

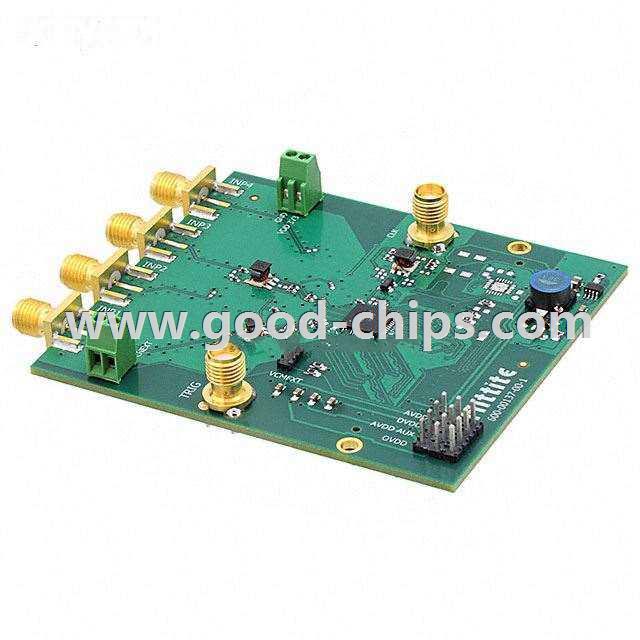

| Description: | HMCAD1511 EasyBoard™ 8 Bit 1G Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | EVAL01-HMCAD1511 Datasheet |
| Internal Part Number | 898-EVAL01-HMCAD1511 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | EasyBoard™ Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
| Manufacturer | Analog Devices Inc. | |
| Series | EasyBoard™ | |
| Part Status | Active | |
| Number of A/D Converters | 4 | |
| Number of Bits | 8 | |
| Sampling Rate (Per Second) | 1G | |
| Data Interface | LVDS - Serial, SPI | |
| Input Range | 2 Vpp | |
| Power (Typ) @ Conditions | 710mW @ 1GSPS | |
| Utilized IC / Part | HMCAD1511 | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | EVAL01-HMCAD1511 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
EVAL01-HMCAD1511 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of EVAL01-HMCAD1511 is new and unused, you can buy EVAL01-HMCAD1511 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for EVAL01-HMCAD1511.
