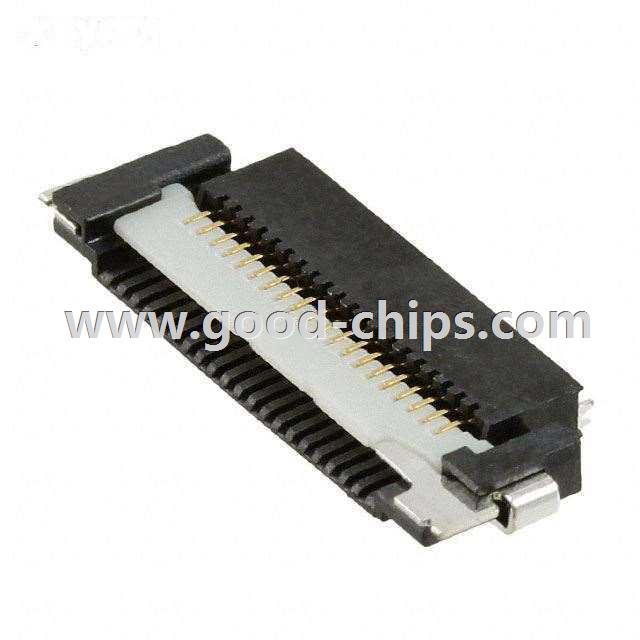

| Manufacturer Part Number: | FA5S020HP1 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Available Quantity: | 9110 Pieces |
| Unit Price: | Quote by Email |
| Description: | 20 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FA5S020HP1 Datasheet |
| Internal Part Number | 898-FA5S020HP1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | FA5 Series | |
| Category | Connectors, Interconnects | |
| Family | FFC, FPC (Flat Flexible) Connectors | |
| Manufacturer | JAE Electronics | |
| Series | FA5 | |
| Packaging | Tray | |
| Part Status | Active | |
| Flat Flex Type | FPC | |
| Mounting Type | Surface Mount, Right Angle | |
| Connector/Contact Type | Contacts, Bottom | |
| Number of Positions | 20 | |
| Pitch | 0.020" (0.50mm) | |
| Termination | Solder | |
| FFC, FCB Thickness | 0.30mm | |
| Height Above Board | 0.057" (1.45mm) | |
| Locking Feature | Flip Lock | |
| Cable End Type | Tapered | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | |
| Features | Solder Retention, Zero Insertion Force (ZIF) | |
| Voltage Rating | 50V | |
| Operating Temperature | -40°C ~ 85°C | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 0.8A per Contact | |
| Standard Package | 62 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FA5S020HP1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FA5S020HP1 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of FA5S020HP1 is new and unused, you can buy FA5S020HP1 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FA5S020HP1.
