| Manufacturer Part Number: | FAN7601G |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - AC DC Converters, Offline Switchers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Converter Offline Flyback Topology Up to 300kHz 10-SSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FAN7601G Datasheet |
| Internal Part Number | 898-FAN7601G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 03/Dec/2009 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - AC DC Converters, Offline Switchers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Output Isolation | - | |
| Internal Switch(s) | Yes | |
| Voltage - Breakdown | - | |
| Topology | Flyback | |
| Voltage - Start Up | 12V | |
| Voltage - Supply (Vcc/Vdd) | 8 V ~ 20 V | |
| Duty Cycle | 95% | |
| Frequency - Switching | Up to 300kHz | |
| Power (Watts) | - | |
| Fault Protection | Over Temperature, Over Voltage | |
| Control Features | Frequency Control, Soft Start | |
| Operating Temperature | -25°C ~ 125°C (TA) | |

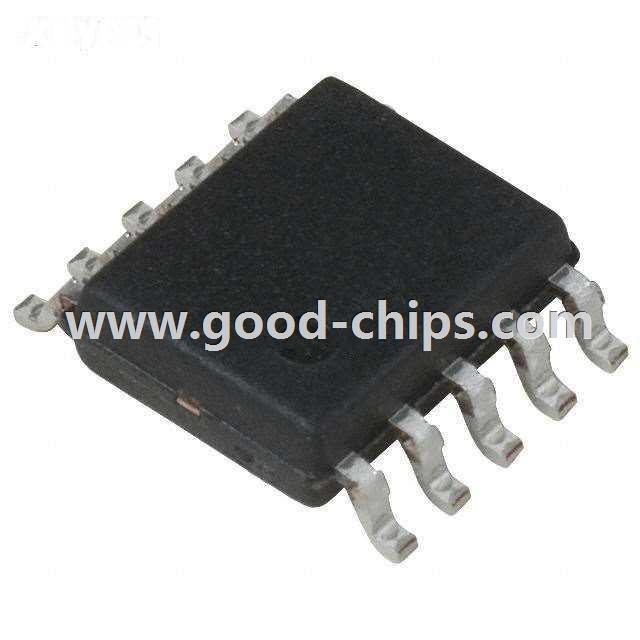

| Package / Case | 10-SOP (0.154", 3.90mm Width) | |
| Supplier Device Package | 10-SSOP | |
| Mounting Type | Surface Mount | |
| Standard Package | 90 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FAN7601G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FAN7601G is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FAN7601G is new and unused, you can buy FAN7601G Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FAN7601G.
