| Manufacturer Part Number: | FDC6036P_F077 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2P-CH 20V 5A 6SSOT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDC6036P_F077 Datasheet |
| Internal Part Number | 898-FDC6036P_F077 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 14/Mar/2011 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Fairchild Semiconductor | |
| Series | PowerTrench® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| FET Type | 2 P-Channel (Dual) | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 5A | |
| Rds On (Max) @ Id, Vgs | 44 mOhm @ 5A, 4.5V | |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 14nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 992pF @ 10V | |
| Power - Max | 900mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

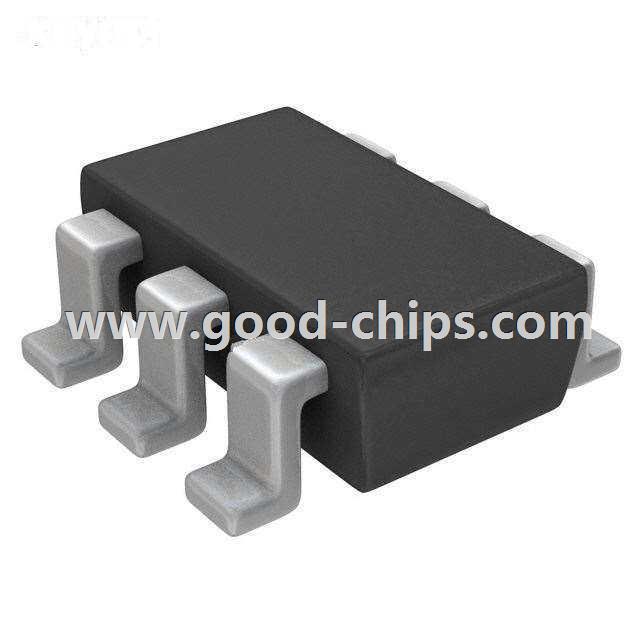

| Package / Case | 6-SSOT Flat-lead, SuperSOT™-6 FLMP | |
| Supplier Device Package | SuperSOT™-6 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDC6036P_F077 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDC6036P_F077 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDC6036P_F077 is new and unused, you can buy FDC6036P_F077 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDC6036P_F077.
