| Manufacturer Part Number: | FDMQ86530L |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 4N-CH 60V 8A MLP4.5X5 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDMQ86530L Datasheet |
| Internal Part Number | 898-FDMQ86530L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Fairchild FDMQ8205 GreenBridge 2 MOSFET | Digi-Key Daily | |
| Featured Product | FDMQ86530L Quad-MOSFET GreenBridge™ Series of High-Efficiency Bridge Rectifiers | |
| PCN Assembly/Origin | Wafer Fab Transfer 29/Sep/2014 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Fairchild Semiconductor | |
| Series | GreenBridge™ PowerTrench® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | 4 N-Channel (H-Bridge) | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 8A | |
| Rds On (Max) @ Id, Vgs | 17.5 mOhm @ 8A, 10V | |
| Vgs(th) (Max) @ Id | 3V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 33nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 2295pF @ 30V | |
| Power - Max | 1.9W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

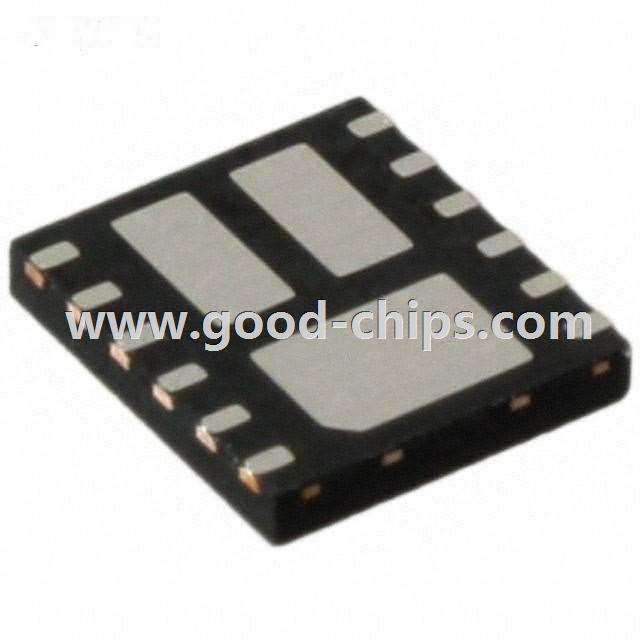

| Package / Case | 12-WDFN Exposed Pad | |
| Supplier Device Package | 12-MLP (5x4.5) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDMQ86530L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDMQ86530L is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDMQ86530L is new and unused, you can buy FDMQ86530L Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDMQ86530L.
