| Manufacturer Part Number: | FDPF390N15A |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 11512 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 150V 15A TO-220F |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDPF390N15A Datasheet |
| Internal Part Number | 898-FDPF390N15A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Wafer 6/8 Inch Addition 16/Jun/2014 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | PowerTrench® | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 150V | |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) | |
| Rds On (Max) @ Id, Vgs | 40 mOhm @ 15A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 18.6nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 1285pF @ 75V | |
| Power - Max | 22W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |

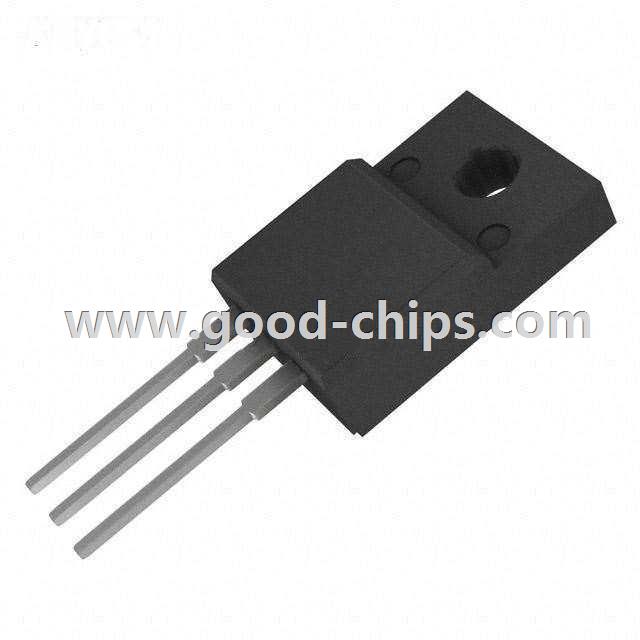

| Package / Case | TO-220-3 Full Pack | |
| Supplier Device Package | TO-220F-3 | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDPF390N15A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDPF390N15A is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDPF390N15A is new and unused, you can buy FDPF390N15A Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDPF390N15A.
