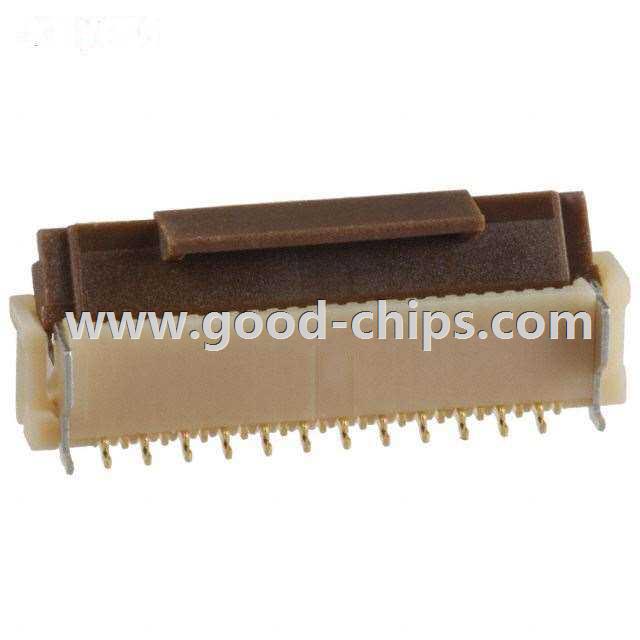

.jpg)
| Manufacturer Part Number: | FH12-24S-0.5SV(55) |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 24 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FH12-24S-0.5SV(55) Datasheet |
| Internal Part Number | 898-FH12-24S-0.5SV(55) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | FH12 - 1mm & 0.5mm FPC/FFC connectors | |
| Featured Product | FH12 Series FFC/FPC Connectors | |
| PCN Obsolescence/ EOL | FH12-SV/FH12-SVA Series Jul/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Connectors, Interconnects | |
| Family | FFC, FPC (Flat Flexible) Connectors | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | FH12 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Not For New Designs | |
| Flat Flex Type | FFC, FPC | |
| Mounting Type | Surface Mount | |
| Connector/Contact Type | Contacts, Vertical, 1 Sided | |
| Number of Positions | 24 | |
| Pitch | 0.020" (0.50mm) | |
| Termination | Solder | |
| FFC, FCB Thickness | 0.30mm | |
| Height Above Board | 0.142" (3.60mm) | |
| Locking Feature | Flip Lock | |
| Cable End Type | Straight | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Housing Material | Polyamide (PA), Nylon | |
| Actuator Material | Polyphenylene Sulfide (PPS) | |
| Features | Solder Retention, Zero Insertion Force (ZIF) | |
| Voltage Rating | 50V | |
| Operating Temperature | -40°C ~ 85°C | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 0.5A | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FH12-24S-0.5SV(55) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FH12-24S-0.5SV(55) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of FH12-24S-0.5SV(55) is new and unused, you can buy FH12-24S-0.5SV(55) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FH12-24S-0.5SV(55).
