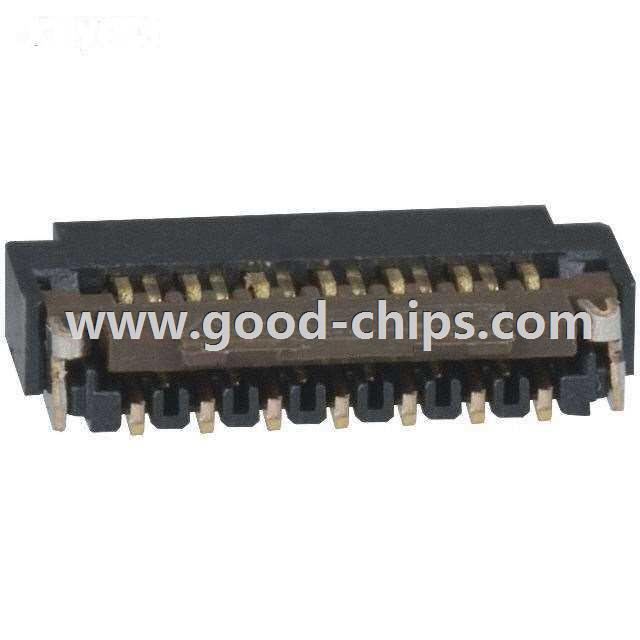

| Manufacturer Part Number: | FH26-13S-0.3SHW(05) |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Available Quantity: | 14010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 13 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FH26-13S-0.3SHW(05) Datasheet |
| Internal Part Number | 898-FH26-13S-0.3SHW(05) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | FH26 Series FFC/FPC Connectors | |
| Online Catalog | FH26 Series | |
| Category | Connectors, Interconnects | |
| Family | FFC, FPC (Flat Flexible) Connectors | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | FH26 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Flat Flex Type | FPC | |
| Mounting Type | Surface Mount, Right Angle | |
| Connector/Contact Type | Contacts, Bottom | |
| Number of Positions | 13 | |
| Pitch | 0.012" (0.30mm) | |
| Termination | Solder | |
| FFC, FCB Thickness | 0.20mm | |
| Height Above Board | 0.039" (1.00mm) | |
| Locking Feature | Flip Lock | |
| Cable End Type | Tapered | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Housing Material | Liquid Crystal Polymer (LCP) | |
| Actuator Material | Polyamide (PA), Nylon | |
| Features | Zero Insertion Force (ZIF) | |
| Voltage Rating | 30V | |
| Operating Temperature | -55°C ~ 85°C | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 0.2A | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FH26-13S-0.3SHW(05) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FH26-13S-0.3SHW(05) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of FH26-13S-0.3SHW(05) is new and unused, you can buy FH26-13S-0.3SHW(05) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FH26-13S-0.3SHW(05).
