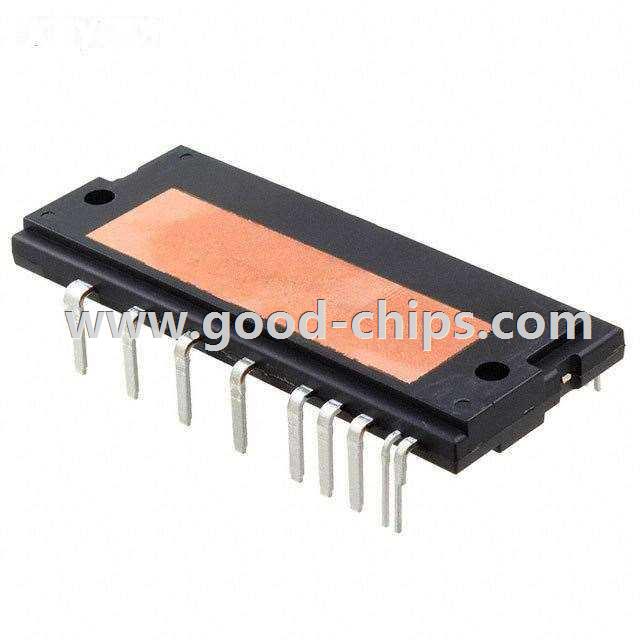

Manufacturer Part Number: | FNA25060 |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Power Driver Modules |
Available Quantity: | 9022 Pieces |
Unit Price: | Quote by Email |
Description: | Power Driver Module IGBT 3 Phase 600V 50A 34-DIP Module |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FNA25060 Datasheet |
Internal Part Number | 898-FNA25060 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Description Chg 16/Mar/2016 Marking Chg 04/May/2016 | |
Category | Discrete Semiconductor Products | |
Family | Power Driver Modules | |
Manufacturer | Fairchild Semiconductor | |
Series | Motion-SPM® | |
Part Status | Active | |
Type | IGBT | |
Configuration | 3 Phase | |
Current | 50A | |
Voltage | 600V | |
Voltage - Isolation | 2500Vrms | |
Package / Case | 34-DIP Module | |
Standard Package | 6 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FNA25060 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FNA25060 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FNA25060 is new and unused, you can buy FNA25060 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FNA25060.
