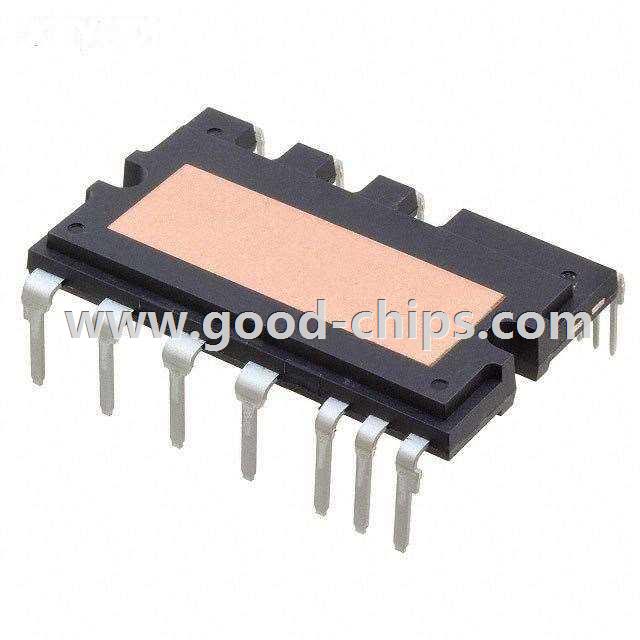

| Manufacturer Part Number: | FSBB10CH120D |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Power Driver Modules |
| Available Quantity: | 9035 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Driver Module IGBT 3 Phase 1200V 10A Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FSBB10CH120D Datasheet |
| Internal Part Number | 898-FSBB10CH120D | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Marking Chg 04/May/2016 SPM3/3V/3F 03/Aug/2016 | |
| Article Library | Over Current Protection or Short Circuit Protection - Article | |
| Category | Discrete Semiconductor Products | |
| Family | Power Driver Modules | |
| Manufacturer | Fairchild Semiconductor | |
| Series | Motion-SPM® | |
| Part Status | Active | |
| Type | IGBT | |
| Configuration | 3 Phase | |
| Current | 10A | |
| Voltage | 1200V | |
| Voltage - Isolation | 2500Vrms | |
| Package / Case | Module | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FSBB10CH120D | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FSBB10CH120D is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FSBB10CH120D is new and unused, you can buy FSBB10CH120D Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FSBB10CH120D.
