| Manufacturer Part Number: | GA400TD25S |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Module Half Bridge 250V 400A 1350W Chassis Mount Dual INT-A-PAK |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | GA400TD25S Datasheet |
| Internal Part Number | 898-GA400TD25S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Vishay Semiconductor Diodes Division | |
| Series | - | |
| Part Status | Obsolete | |
| IGBT Type | - | |
| Configuration | Half Bridge | |
| Voltage - Collector Emitter Breakdown (Max) | 250V | |
| Current - Collector (Ic) (Max) | 400A | |
| Power - Max | 1350W | |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 15V, 400A | |
| Current - Collector Cutoff (Max) | 500µA | |
| Input Capacitance (Cies) @ Vce | 36nF @ 30V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Mounting Type | Chassis Mount | |

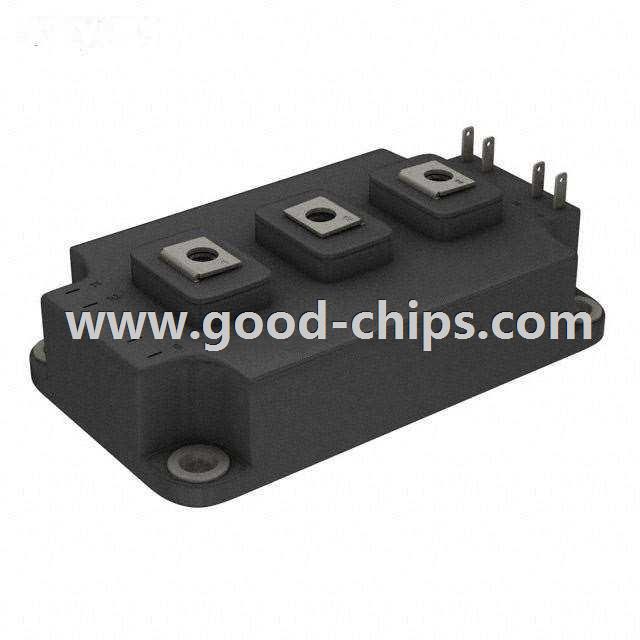

| Package / Case | Dual INT-A-PAK (3 + 8) | |
| Supplier Device Package | Dual INT-A-PAK | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | GA400TD25S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
GA400TD25S is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of GA400TD25S is new and unused, you can buy GA400TD25S Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for GA400TD25S.
