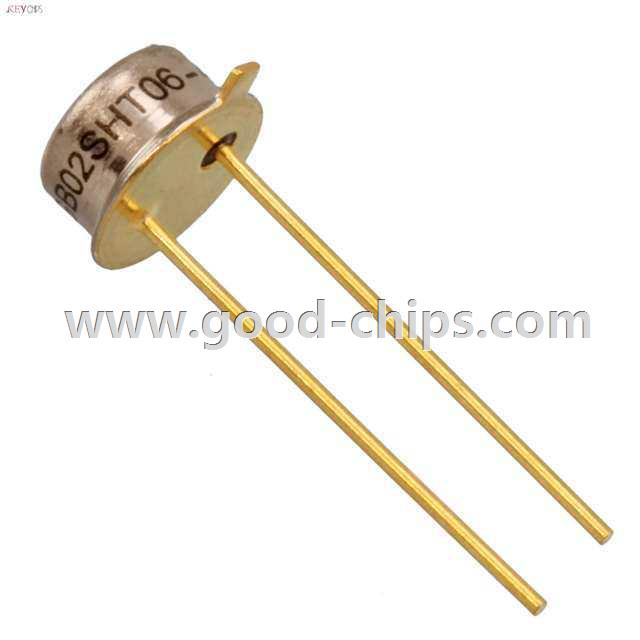

| Manufacturer Part Number: | GB02SHT06-46 |
|---|---|
| Manufacturer: | GeneSiC Semiconductor |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9104 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY 600V 4A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | GB02SHT06-46 Datasheet |
| Internal Part Number | 898-GB02SHT06-46 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Silicon Carbide Power Schottky Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | GeneSiC Semiconductor | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Type | Silicon Carbide Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 600V | |
| Current - Average Rectified (Io) | 4A (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 1.6V @ 1A | |
| Speed | No Recovery Time > 500mA (Io) | |
| Reverse Recovery Time (trr) | 0ns | |
| Current - Reverse Leakage @ Vr | 5µA @ 600V | |
| Capacitance @ Vr, F | 76pF @ 1V, 1MHz | |
| Mounting Type | Through Hole | |
| Package / Case | TO-206AB, TO-46-3 Metal Can | |
| Supplier Device Package | TO-46 | |
| Operating Temperature - Junction | -55°C ~ 225°C | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | GB02SHT06-46 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
GB02SHT06-46 is in stock for immediate shipping now. We are the distributor of GeneSiC Semiconductor all series components. The condition of GB02SHT06-46 is new and unused, you can buy GB02SHT06-46 GeneSiC Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for GB02SHT06-46.
