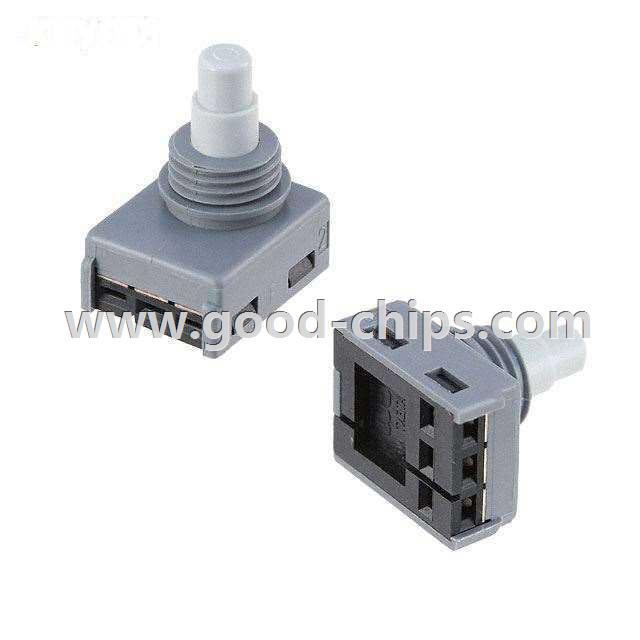

| Manufacturer Part Number: | GC-536-0102 |
|---|---|
| Manufacturer: | CW Industries |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch SPDT Standard Panel Mount, Rear |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | GC-536-0102 Datasheet |
| Internal Part Number | 898-GC-536-0102 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | GC-536 Series Pushbutton Switches | |
| Online Catalog | GC-536 Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | CW Industries | |
| Series | GC-536 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Standard | |
| Circuit | SPDT | |
| Switch Function | On-On | |
| Current Rating | 1A (AC), 3A (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 14V | |
| Actuator Type | Round, Plunger | |
| Color - Actuator/Cap | White | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount, Rear | |
| Termination Style | Socketable | |
| Ingress Protection | - | |
| Features | - | |
| Panel Cutout Dimensions | - | |
| Operating Temperature | - | |
| Mechanical Life | 30,000 Cycles | |
| Electrical Life | - | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | GC-536-0102 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
GC-536-0102 is in stock for immediate shipping now. We are the distributor of CW Industries all series components. The condition of GC-536-0102 is new and unused, you can buy GC-536-0102 CW Industries with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for GC-536-0102.
