| Manufacturer Part Number: | GP2M020A050N |
|---|---|
| Manufacturer: | Global Power Technologies Group |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 500V 20A TO3PN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | GP2M020A050N Datasheet |
| Internal Part Number | 898-GP2M020A050N | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Global Power Technologies Group | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 500V | |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) | |
| Rds On (Max) @ Id, Vgs | 300 mOhm @ 10A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 44nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 2880pF @ 25V | |
| Power - Max | 312W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |

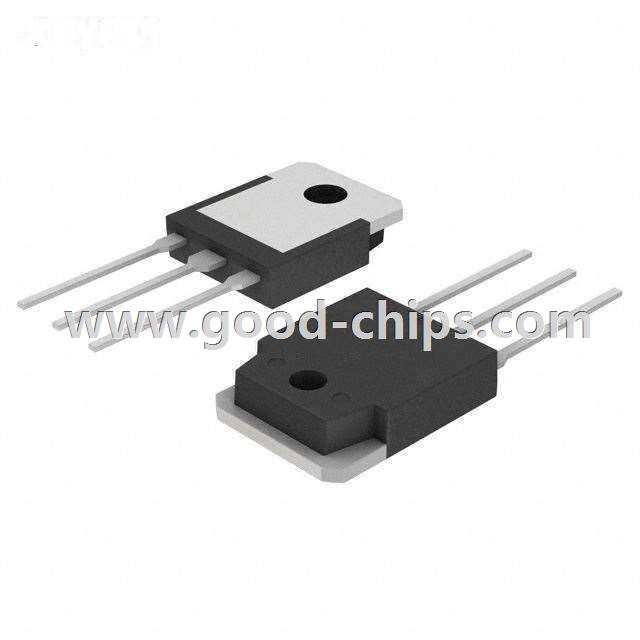

| Package / Case | TO-3P-3, SC-65-3 | |
| Supplier Device Package | TO-3PN | |
| Standard Package | 1,800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | GP2M020A050N | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
GP2M020A050N is in stock for immediate shipping now. We are the distributor of Global Power Technologies Group all series components. The condition of GP2M020A050N is new and unused, you can buy GP2M020A050N Global Power Technologies Group with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for GP2M020A050N.
