Manufacturer Part Number: | GR-2023B-0003 |
---|---|
Manufacturer: | CW Industries |
Product Category: | Rocker Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

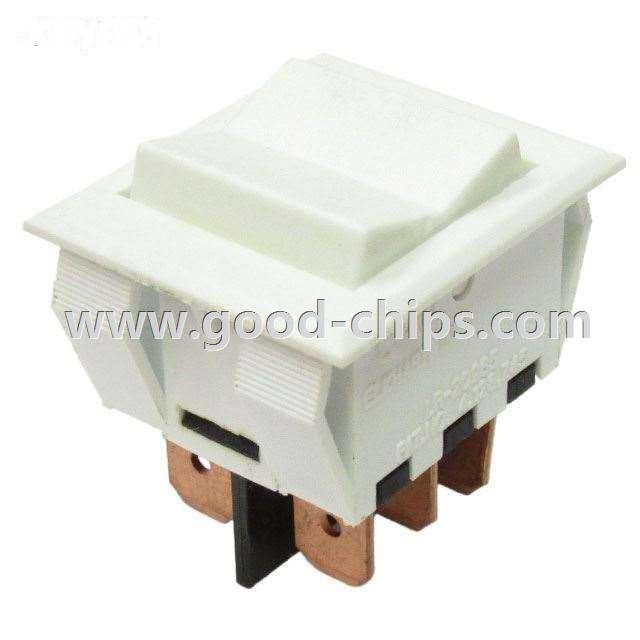

Description: | Rocker Switch DPDT 8A (AC) 125V Panel Mount, Snap-In |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | GR-2023B-0003 Datasheet |
Internal Part Number | 898-GR-2023B-0003 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Switches | |
Family | Rocker Switches | |
Manufacturer | CW Industries | |
Series | 2000 | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | DPDT | |
Switch Function | On-Off-Mom | |
Current Rating | 8A (AC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | - | |
Actuator Type | Concave (Standard V) | |
Color - Actuator/Cap | White | |
Actuator Marking | No Marking | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Mounting Type | Panel Mount, Snap-In | |
Termination Style | Quick Connect - 0.250" (6.3mm) | |
Ingress Protection | - | |
Features | Terminal Barriers | |
Panel Cutout Dimensions | Rectangular - 27.20mm x 22.15mm | |
Operating Temperature | -20°C ~ 105°C | |
Mechanical Life | 25,000 Cycles | |
Electrical Life | 25,000 Cycles | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | GR-2023B-0003 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
GR-2023B-0003 is in stock for immediate shipping now. We are the distributor of CW Industries all series components. The condition of GR-2023B-0003 is new and unused, you can buy GR-2023B-0003 CW Industries with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for GR-2023B-0003.
