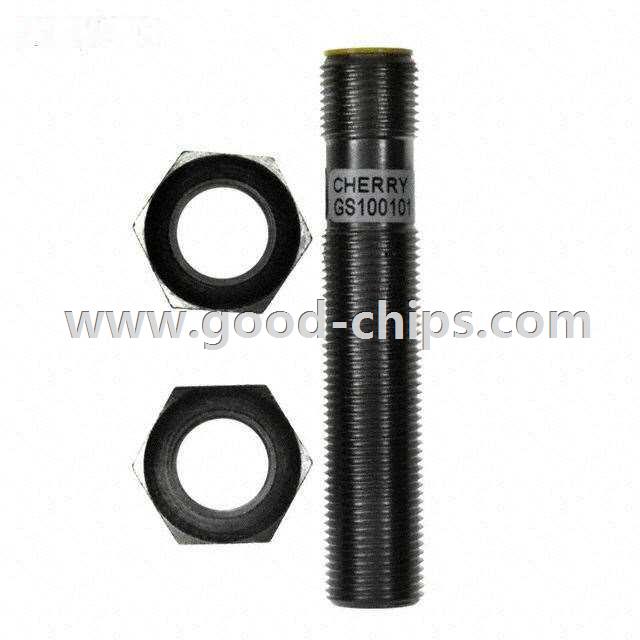

| Manufacturer Part Number: | GS100101 |
|---|---|
| Manufacturer: | Cherry |
| Product Category: | Magnetic Sensors - Position, Proximity, Speed (Modules) |
| Available Quantity: | 9131 Pieces |
| Unit Price: | Quote by Email |
| Description: | Magnetic Hall Effect Sensor Ferrous Metals, Gear Tooth Digital Connector Barrel, Stainless Steel |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | GS100101 Datasheet |
| Internal Part Number | 898-GS100101 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Multiple Devices 15/Dec/2010 | |
| Online Catalog | GS1001 Series | |
| Category | Sensors, Transducers | |
| Family | Magnetic Sensors - Position, Proximity, Speed (Modules) | |
| Manufacturer | Cherry | |
| Series | - | |
| Part Status | Active | |
| Output Type | Digital | |
| Type | Hall Effect Sensor | |
| Actuator Material | Ferrous Metals, Gear Tooth | |
| Termination Style | Connector | |
| Frequency | 15kHz | |
| Voltage - Supply | 5 V ~ 24 V | |
| Must Operate | - | |
| Must Release | - | |
| Operating Temperature | -40°C ~ 105°C (TA) | |
| Package / Case | Barrel, Stainless Steel | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | GS100101 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
GS100101 is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of GS100101 is new and unused, you can buy GS100101 Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for GS100101.
