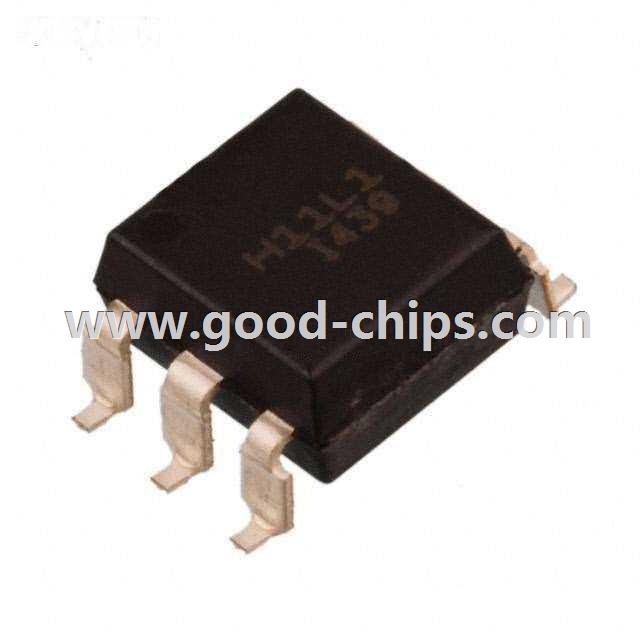

| Manufacturer Part Number: | H11L1SMT/R |
|---|---|
| Manufacturer: | Isocom Components 2004 LTD |
| Product Category: | Optoisolators - Logic Output |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Logic Output Optoisolator 1MHz Open Collector 5000Vrms 1 Channel 6-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | H11L1SMT/R Datasheet |
| Internal Part Number | 898-H11L1SMT/R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | H11Lx Series | |
| Category | Isolators | |
| Family | Optoisolators - Logic Output | |
| Manufacturer | Isocom Components 2004 LTD | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Inputs - Side 1/Side 2 | 1/0 | |
| Voltage - Isolation | 5000Vrms | |
| Common Mode Transient Immunity (Min) | - | |
| Input Type | DC | |
| Output Type | Open Collector | |
| Current - Output / Channel | 50mA | |
| Data Rate | 1MHz | |
| Propagation Delay tpLH / tpHL (Max) | 6µs, 3µs | |
| Rise / Fall Time (Typ) | 100ns, 50ns | |
| Voltage - Forward (Vf) (Typ) | - | |
| Current - DC Forward (If) (Max) | 50mA | |
| Voltage - Supply | 3 V ~ 15 V | |
| Operating Temperature | -25°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-SMD, Gull Wing | |
| Supplier Device Package | 6-SMD | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | H11L1SMT/R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
H11L1SMT/R is in stock for immediate shipping now. We are the distributor of Isocom Components 2004 LTD all series components. The condition of H11L1SMT/R is new and unused, you can buy H11L1SMT/R Isocom Components 2004 LTD with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H11L1SMT/R.
