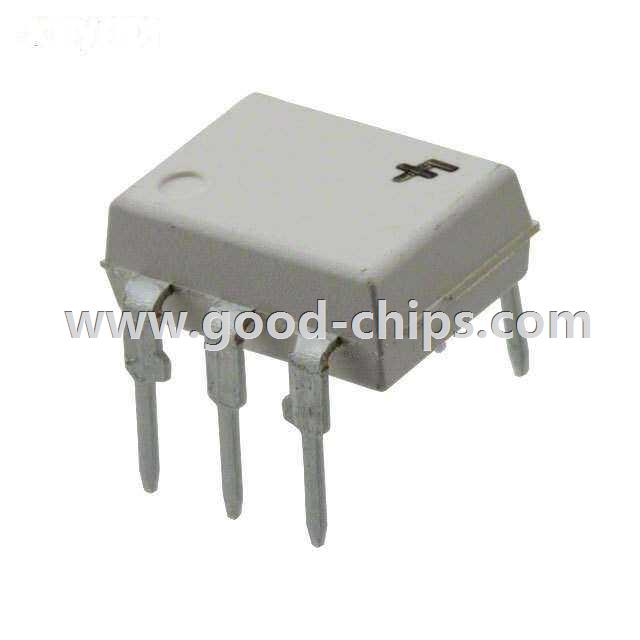

| Manufacturer Part Number: | H11L3VM |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Optoisolators - Logic Output |
| Available Quantity: | 9071 Pieces |
| Unit Price: | Quote by Email |
| Description: | Logic Output Optoisolator 1MHz Open Collector 4170Vrms 1 Channel 6-DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | H11L3VM Datasheet |
| Internal Part Number | 898-H11L3VM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Datasheet Update 11/Jun/2014 | |
| Online Catalog | H11L1M/2M/3M Series | |
| Category | Isolators | |
| Family | Optoisolators - Logic Output | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Inputs - Side 1/Side 2 | 1/0 | |
| Voltage - Isolation | 4170Vrms | |
| Common Mode Transient Immunity (Min) | - | |
| Input Type | DC | |
| Output Type | Open Collector | |
| Current - Output / Channel | 50mA | |
| Data Rate | 1MHz | |
| Propagation Delay tpLH / tpHL (Max) | 4µs, 4µs | |
| Rise / Fall Time (Typ) | 100ns, 100ns | |
| Voltage - Forward (Vf) (Typ) | 1.2V | |
| Current - DC Forward (If) (Max) | 30mA | |
| Voltage - Supply | 3 V ~ 15 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Through Hole | |
| Package / Case | 6-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 6-DIP | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | H11L3VM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
H11L3VM is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of H11L3VM is new and unused, you can buy H11L3VM Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H11L3VM.
