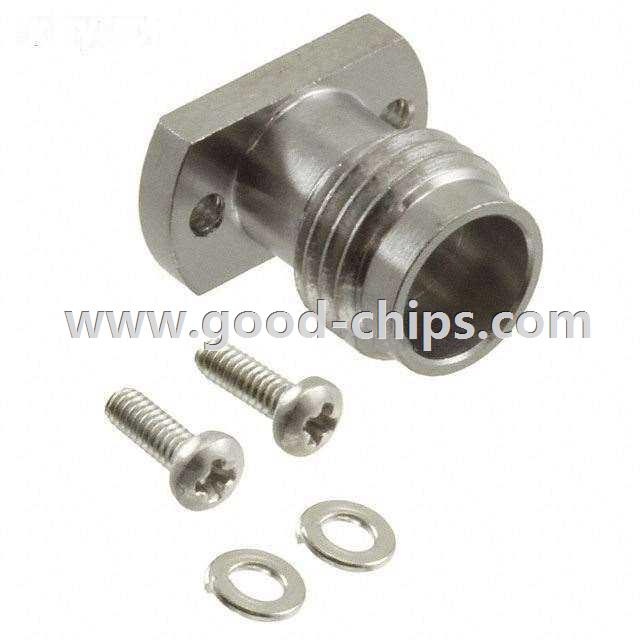

.jpg)
| Manufacturer Part Number: | H2.4-R-SR2(12) |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 9354 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.4mm (APC-2.4, OS-50) Connector Receptacle, Female Socket 50 Ohm Panel Mount, Flange (2 Hole) Compression |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | H2.4-R-SR2(12) Datasheet |
| Internal Part Number | 898-H2.4-R-SR2(12) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | H2.4, HK PCB Design Guidelines | |
| Video File | Hirose H2.4 RF Connector | Digi-Key Daily | |
| Online Catalog | H2.4 Series | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | H2.4 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | 2.4mm (APC-2.4, OS-50) | |
| Connector Type | Receptacle, Female Socket | |
| Contact Termination | Compression | |
| Shield Termination | Screw | |
| Impedance | 50 Ohm | |
| Mounting Type | Panel Mount, Flange (2 Hole) | |
| Cable Group | - | |
| Fastening Type | Threaded | |
| Frequency - Max | 50Ghz | |
| Features | Field Replaceable, For Hermetically Sealed Pin, Mounting Hardware | |
| Housing Color | Silver | |
| Ingress Protection | - | |
| Body Material | Stainless Steel | |
| Body Finish | - | |
| Center Contact Material | Beryllium Copper | |
| Center Contact Plating | Gold | |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | |
| Voltage Rating | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | H2.4-R-SR2(12) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
H2.4-R-SR2(12) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of H2.4-R-SR2(12) is new and unused, you can buy H2.4-R-SR2(12) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H2.4-R-SR2(12).
