Manufacturer Part Number: | H3070-01 |
---|---|
Manufacturer: | Harwin Inc. |
Product Category: | Terminals - Turret Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

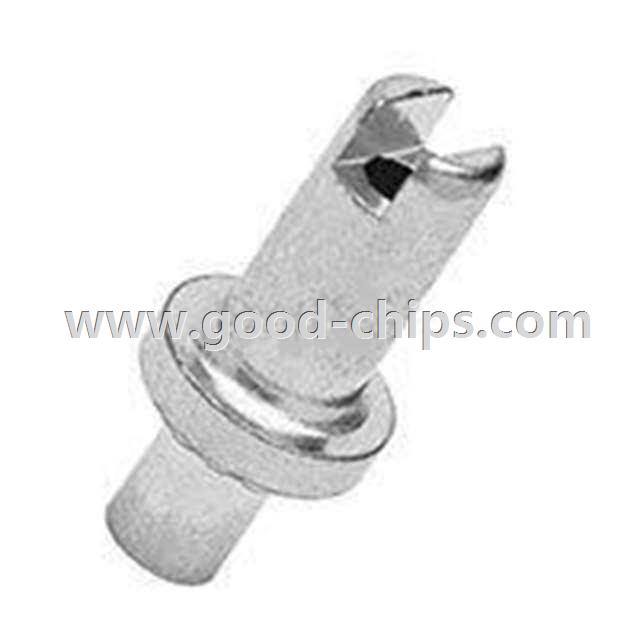

Description: | Terminal Turret Connector Single End, Fork, Hollow 0.246" ~ 0.261" (6.25mm ~ 6.63mm) Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | H3070-01 Datasheet |
Internal Part Number | 898-H3070-01 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Terminals - Turret Connectors | |
Manufacturer | Harwin Inc. | |
Series | - | |
Part Status | Active | |
Terminal Type | Single End, Fork, Hollow | |
Number of Turrets | Single | |
Length - Above Board | 0.246" ~ 0.261" (6.25mm ~ 6.63mm) | |
Length - Below Flange | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) | |
Length - Overall | 0.340" ~ 0.360" (8.64mm ~ 9.15mm) | |
Mounting Type | Through Hole | |
Termination | Swage | |
Flange Diameter | 0.153" ~ 0.159" (3.88mm ~ 4.04mm) | |
Diameter - Turret Head | - | |
Staking Side OD | 0.076" ~ 0.079" (1.93mm ~ 2.01mm) | |
Staking Side ID | - | |
Mounting Hole Diameter | 0.080" ~ 0.083" (2.03mm ~ 2.11mm) | |
Board Thickness | 0.063" (1.60mm) | |
Contact Material | Brass Alloy | |
Contact Finish | Tin | |
Contact Finish Thickness | - | |
Insulation | Non-Insulated | |
Material - Insulation | - | |
Insulation Color | - | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | H3070-01 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
H3070-01 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of H3070-01 is new and unused, you can buy H3070-01 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H3070-01.
