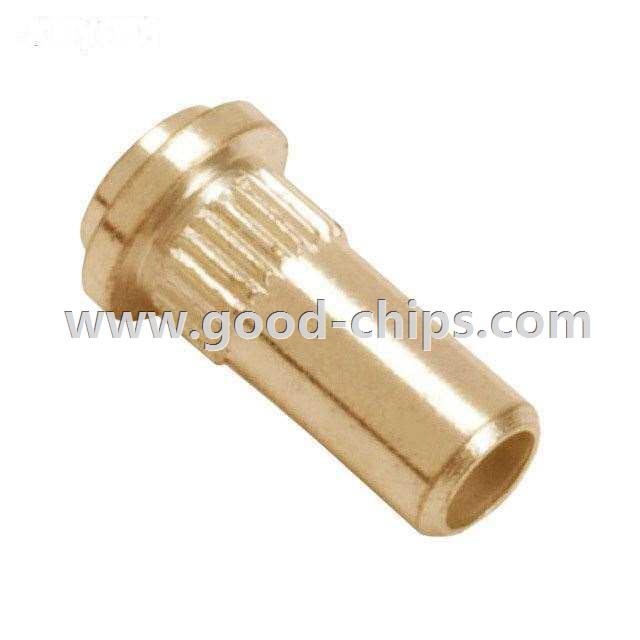

Manufacturer Part Number: | H3169-05 |
---|---|
Manufacturer: | Harwin Inc. |
Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Pin Receptacle Connector 0.035" ~ 0.041" (0.89mm ~ 1.05mm) No Tail Press-Fit, Knurled |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | H3169-05 Datasheet |
Internal Part Number | 898-H3169-05 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Terminals - PC Pin Receptacles, Socket Connectors | |
Manufacturer | Harwin Inc. | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Tail Type | No Tail | |
Termination | Press-Fit, Knurled | |
Length - Overall | 0.236" (6.00mm) | |
Accepts Pin Diameter | 0.035" ~ 0.041" (0.89mm ~ 1.05mm) | |
Mounting Hole Diameter | 0.086" ~ 0.088" (2.18mm ~ 2.24mm) | |
Pin Hole Diameter | - | |
Flange Diameter | 0.125" (3.18mm) | |
Tail Diameter | - | |
Socket Depth | 0.140" (3.56mm) | |
Contact Material | Beryllium Copper | |
Contact Finish | Gold | |
Contact Finish Thickness | 5.9µin (0.15µm) | |
Features | - | |
Operating Temperature | -55°C ~ 125°C | |
Board Thickness | - | |
Insertion Force | 2.99Nm ~ 7.88Nm | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | H3169-05 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
H3169-05 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of H3169-05 is new and unused, you can buy H3169-05 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for H3169-05.
