| Manufacturer Part Number: | HA4P5002-5Z |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Available Quantity: | 9198 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buffer Amplifier 1 Circuit 20-PLCC (9x9) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HA4P5002-5Z Datasheet |
| Internal Part Number | 898-HA4P5002-5Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Amplifier Type | Buffer | |
| Number of Circuits | 1 | |
| Output Type | - | |
| Slew Rate | 1300 V/µs | |
| Gain Bandwidth Product | - | |
| -3db Bandwidth | 110MHz | |
| Current - Input Bias | 2µA | |
| Voltage - Input Offset | 5mV | |
| Current - Supply | 8.3mA | |
| Current - Output / Channel | 220mA | |
| Voltage - Supply, Single/Dual (±) | 10 V ~ 40 V, ±5 V ~ 20 V | |
| Operating Temperature | 0°C ~ 75°C | |
| Mounting Type | Surface Mount | |

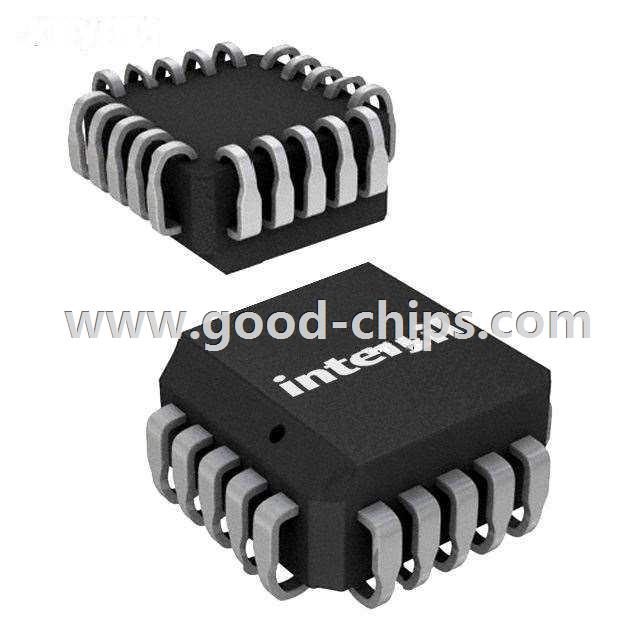

| Package / Case | 20-LCC (J-Lead) | |
| Supplier Device Package | 20-PLCC (9x9) | |
| Standard Package | 46 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HA4P5002-5Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HA4P5002-5Z is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of HA4P5002-5Z is new and unused, you can buy HA4P5002-5Z Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HA4P5002-5Z.
