| Manufacturer Part Number: | HBC335R744 |
|---|---|
| Manufacturer: | Winchester Electronics |
| Product Category: | Coaxial Connectors (RF) - Adapters |
| Available Quantity: | 9186 Pieces |
| Unit Price: | Quote by Email |

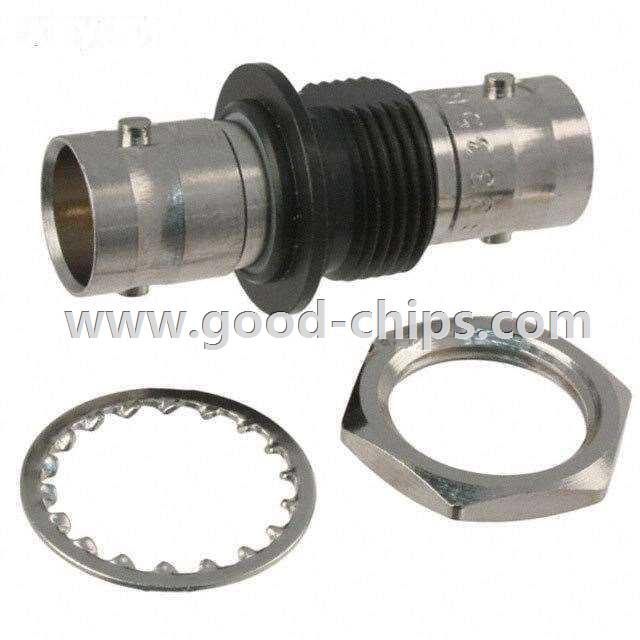

| Description: | Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HBC335R744 Datasheet |
| Internal Part Number | 898-HBC335R744 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Shadow™ HBC Series High Definition 75ohm Connectors | |
| Online Catalog | Shadow™ Series | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) - Adapters | |
| Manufacturer | Winchester Electronics | |
| Series | Shadow™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Adapter Type | Jack to Jack | |
| Adapter Series | BNC to BNC | |
| Center Gender | Female to Female | |
| Convert From (Adapter End) | BNC Jack, Female Socket | |
| Convert To (Adapter End) | BNC Jack, Female Socket | |
| Conversion Type | Same Series | |
| Impedance | 75 Ohm | |
| Style | Straight | |
| Mounting Type | Panel Mount, Bulkhead | |
| Frequency - Max | 3GHz | |
| Ingress Protection | - | |
| Features | Isolated | |
| Body Material | Brass | |
| Body Finish | Nickel | |
| Dielectric Material | - | |
| Center Contact Material | - | |
| Center Contact Plating | - | |
| Mating Cycles | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HBC335R744 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HBC335R744 is in stock for immediate shipping now. We are the distributor of Winchester Electronics all series components. The condition of HBC335R744 is new and unused, you can buy HBC335R744 Winchester Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HBC335R744.
