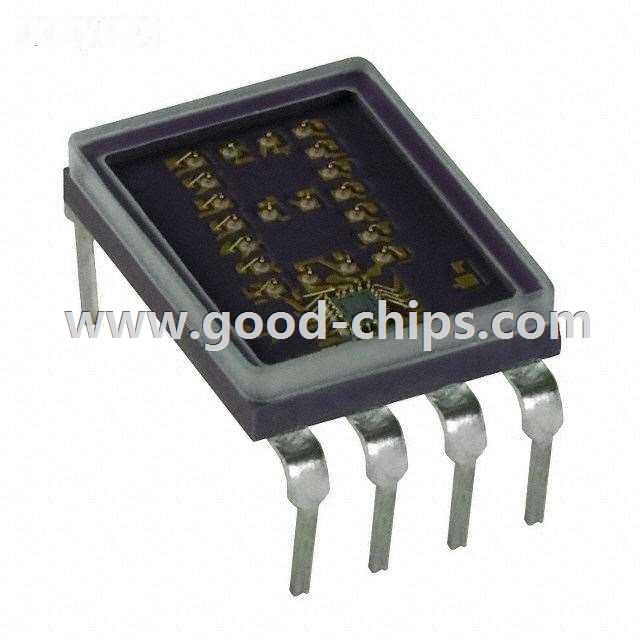

| Manufacturer Part Number: | HDSP-0762 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 9215 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Red 7-Segment, Hexadecimal 1 Character Common Anode 10mA 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) 8-DIP (0.600", 15.20mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HDSP-0762 Datasheet |
| Internal Part Number | 898-HDSP-0762 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | Blister pack appearance chg 1/Mar/2016 | |
| Online Catalog | HDSP-076x/077x/096x Series | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Broadcom Limited | |
| Series | HDSP-076x | |
| Packaging | Bulk | |
| Part Status | Active | |
| Number of Characters | 1 | |
| Size / Dimension | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | |
| Digit/Alpha Size | 0.29" (7.37mm) | |
| Display Type | 7-Segment, Hexadecimal | |
| Common Pin | Common Anode | |
| Color | Red | |
| Voltage - Forward (Vf) (Typ) | - | |
| Current - Test | 10mA | |
| Millicandela Rating | 0.14mcd | |
| Wavelength - Peak | 635nm | |
| Power Dissipation (Max) | 573mW | |
| Package / Case | 8-DIP (0.600", 15.20mm) | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HDSP-0762 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HDSP-0762 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HDSP-0762 is new and unused, you can buy HDSP-0762 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HDSP-0762.
