| Manufacturer Part Number: | HHM1570B1 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Balun |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |

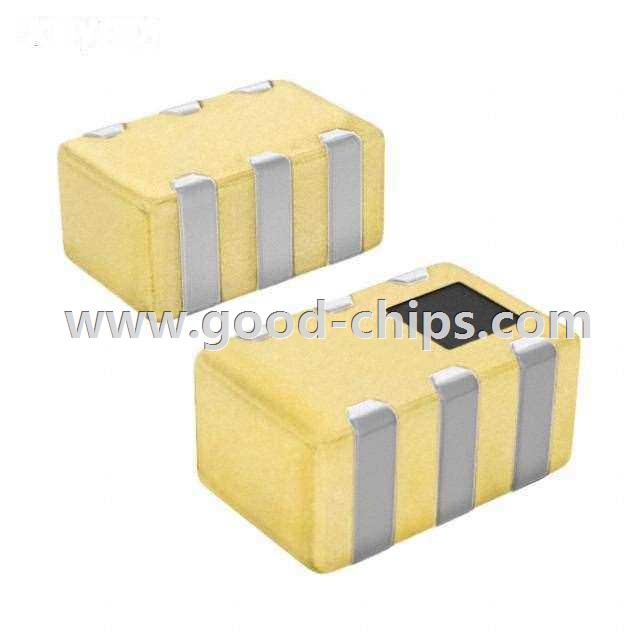

| Description: | RF Balun 4.9GHz ~ 5.95GHz 50 / 100 Ohm 0805 (2012 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HHM1570B1 Datasheet |
| Internal Part Number | 898-HHM1570B1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | RF Products Overview | |
| Design Resources | IoT Product Selector | |
| Online Catalog | HHM Series | |
| Category | RF/IF and RFID | |
| Family | Balun | |
| Manufacturer | TDK Corporation | |
| Series | HHM | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency Range | 4.9GHz ~ 5.95GHz | |
| Impedance - Unbalanced/Balanced | 50 / 100 Ohm | |
| Phase Difference | 180° ±10 | |
| Insertion Loss (Max) | 1.0dB | |
| Return Loss (Min) | 10dB | |
| Package / Case | 0805 (2012 Metric) | |
| Mounting Type | Surface Mount | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HHM1570B1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HHM1570B1 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of HHM1570B1 is new and unused, you can buy HHM1570B1 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HHM1570B1.
