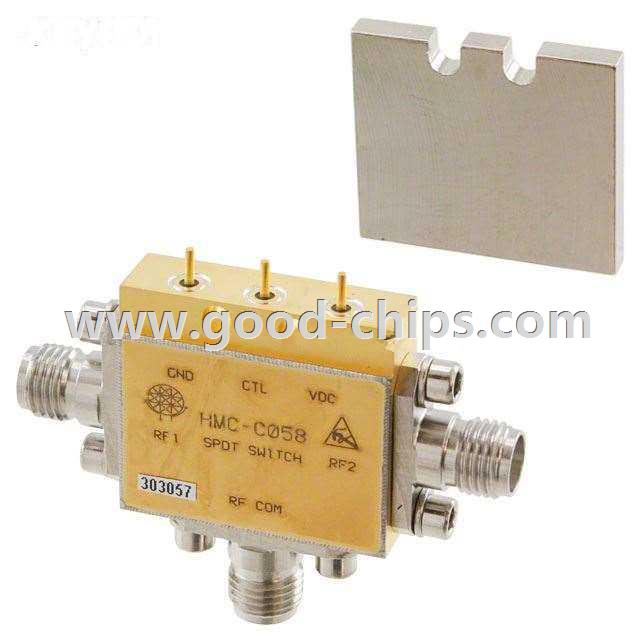

| Manufacturer Part Number: | HMC-C058 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | RF Switches |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC General Purpose SPDT 18GHz 50 Ohm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMC-C058 Datasheet |
| Internal Part Number | 898-HMC-C058 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Featured Product | New HMC Series SPDT Switches | |
| Online Catalog | HMC-C058 | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Frequency - Lower | DC | |
| Frequency - Upper | 18GHz | |
| Isolation @ Frequency | 55dB @ 18GHz (typ) | |
| Insertion Loss @ Frequency | 3dB @ 18GHz | |
| IIP3 | 46dBm (typ) | |
| Topology | Absorptive | |
| Circuit | SPDT | |
| P1dB | 27dBm (typ) IP1dB | |
| Features | - | |
| Impedance | 50 Ohm | |
| Operating Temperature | -55°C ~ 85°C | |
| Voltage - Supply | 5V | |
| RF Type | General Purpose | |
| Package / Case | Module, SMA Connectors | |
| Supplier Device Package | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMC-C058 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMC-C058 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of HMC-C058 is new and unused, you can buy HMC-C058 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC-C058.
