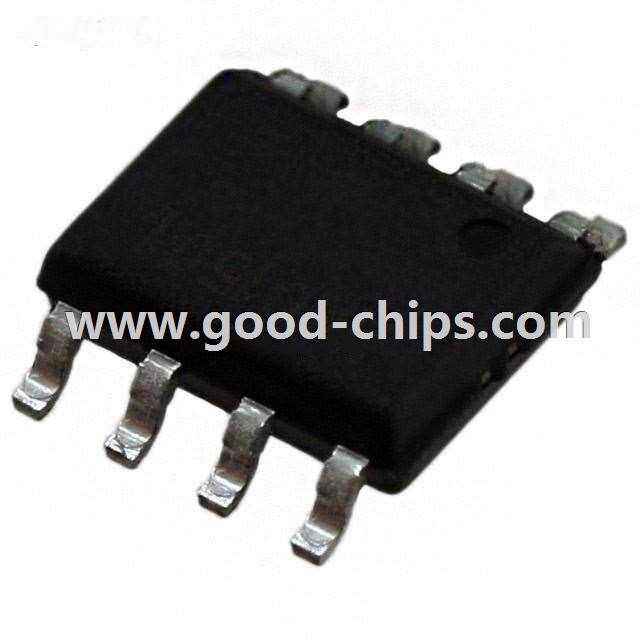

| Manufacturer Part Number: | HMC1501-TR |
|---|---|
| Manufacturer: | Honeywell Microelectronics & Precision Sensors |
| Product Category: | Position Sensors - Angle, Linear Position Measuring |
| Available Quantity: | 58010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Magnetoresistive Sensor Angle, Linear, Rotary External Magnet, Not Included SMD (SMT) Tab |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMC1501-TR Datasheet |
| Internal Part Number | 898-HMC1501-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Magnetic Sensors | |
| Online Catalog | HMC15xx | |
| Category | Sensors, Transducers | |
| Family | Position Sensors - Angle, Linear Position Measuring | |
| Manufacturer | Honeywell Microelectronics & Precision Sensors | |
| Series | - | |
| Part Status | Active | |
| For Measuring | Angle, Linear, Rotary | |
| Technology | Magnetoresistive | |
| Rotation Angle - Electrical, Mechanical | 90° (±45°) | |
| Linear Range | 0 ~ 8.00mm (0 ~ 0.31") | |
| Output | Wheatstone Bridge | |
| Output Signal | - | |
| Actuator Type | External Magnet, Not Included | |
| Linearity | - | |
| Resistance (Ohms) | 6.5k | |
| Resistance Tolerance | - | |
| Voltage - Supply | 1 V ~ 25 V | |
| Mounting Type | Surface Mount | |
| Termination Style | SMD (SMT) Tab | |
| Operating Temperature | -40°C ~ 125°C | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMC1501-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMC1501-TR is in stock for immediate shipping now. We are the distributor of Honeywell Microelectronics & Precision Sensors all series components. The condition of HMC1501-TR is new and unused, you can buy HMC1501-TR Honeywell Microelectronics & Precision Sensors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC1501-TR.
