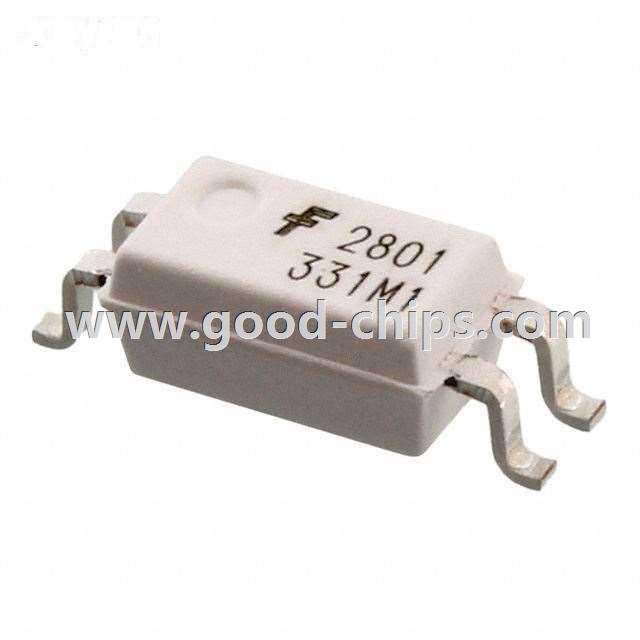

| Manufacturer Part Number: | HMHA2801 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 11907 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Transistor Output 3750Vrms 1 Channel 4-Mini-Flat |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMHA2801 Datasheet |
| Internal Part Number | 898-HMHA2801 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | HMHA281, 2801, 2801A Series | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Voltage - Isolation | 3750Vrms | |
| Current Transfer Ratio (Min) | 80% @ 5mA | |
| Current Transfer Ratio (Max) | 600% @ 5mA | |
| Turn On / Turn Off Time (Typ) | - | |
| Rise / Fall Time (Typ) | 3µs, 3µs | |
| Input Type | DC | |
| Output Type | Transistor | |
| Voltage - Output (Max) | 80V | |
| Current - Output / Channel | 50mA | |
| Voltage - Forward (Vf) (Typ) | 1.3V (Max) | |
| Current - DC Forward (If) (Max) | 50mA | |
| Vce Saturation (Max) | 300mV | |
| Operating Temperature | -55°C ~ 100°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SOIC (0.173", 4.40mm) | |
| Supplier Device Package | 4-Mini-Flat | |
| Standard Package | 150 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMHA2801 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMHA2801 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of HMHA2801 is new and unused, you can buy HMHA2801 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMHA2801.
