| Manufacturer Part Number: | HRF-SW1030-FL-TR |
|---|---|
| Manufacturer: | Honeywell Microelectronics & Precision Sensors |
| Product Category: | RF Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC Cellular, PCS, GSM, WLL SP6T 2.5GHz 50 Ohm 24-VQFN Exposed Pad (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HRF-SW1030-FL-TR Datasheet |
| Internal Part Number | 898-HRF-SW1030-FL-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Microwave Solderability Quality Coordination Memo QA11-004 | |
| Product Training Modules | RF Microwave Products, Switches and Attenuators | |
| Design Resources | IoT Product Selector | |
| PCN Design/Specification | Leadframe Plating/Pad Dimension 14/Jun/2011 | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | Honeywell Microelectronics & Precision Sensors | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency - Lower | DC | |
| Frequency - Upper | 2.5GHz | |
| Isolation @ Frequency | 40dB @ 3GHz (typ) | |
| Insertion Loss @ Frequency | 2.4dB @ 2.5GHz | |
| IIP3 | 35dBm (typ) | |
| Topology | Absorptive | |
| Circuit | SP6T | |
| P1dB | 25dBm (typ) IP1dB | |
| Features | - | |
| Impedance | 50 Ohm | |
| Operating Temperature | -40°C ~ 85°C | |
| Voltage - Supply | 3.3 V ~ 5.5 V | |
| RF Type | Cellular, PCS, GSM, WLL | |

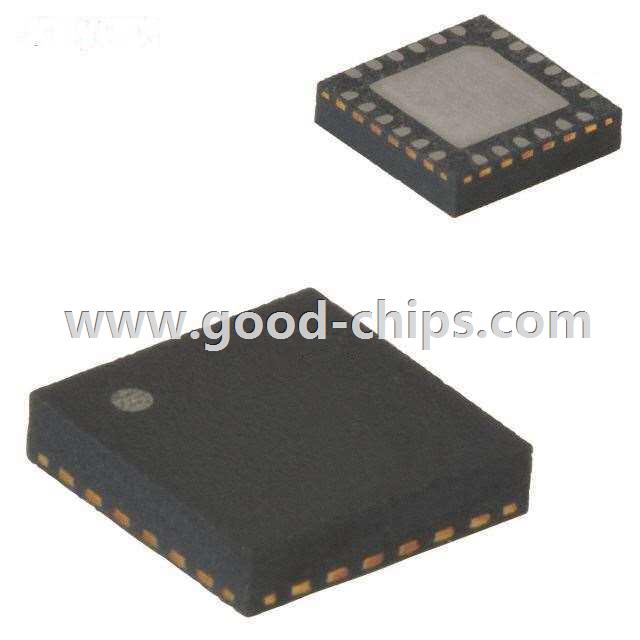

| Package / Case | 24-VQFN Exposed Pad | |
| Supplier Device Package | 24-VQFN Exposed Pad (4x4) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HRF-SW1030-FL-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HRF-SW1030-FL-TR is in stock for immediate shipping now. We are the distributor of Honeywell Microelectronics & Precision Sensors all series components. The condition of HRF-SW1030-FL-TR is new and unused, you can buy HRF-SW1030-FL-TR Honeywell Microelectronics & Precision Sensors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HRF-SW1030-FL-TR.
