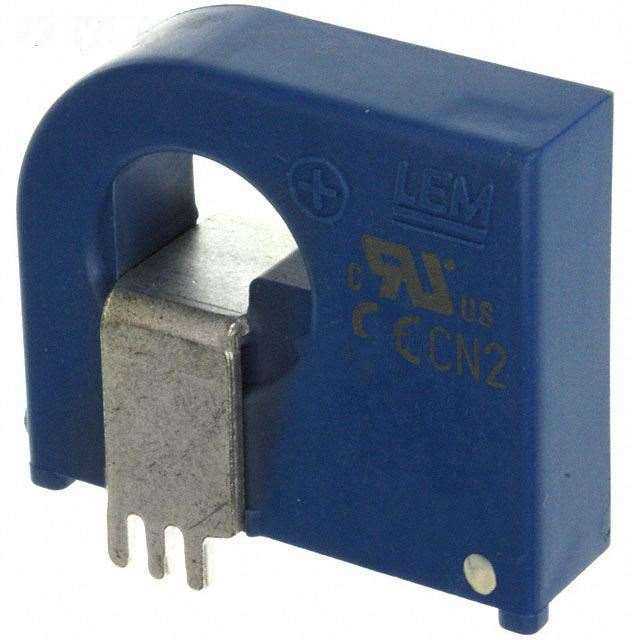

| Manufacturer Part Number: | HTB 75-TP |
|---|---|
| Manufacturer: | LEM USA Inc. |
| Product Category: | Current Transducers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Current Sensor 75A 1 Channel Hall Effect, Open Loop Bidirectional Module, Single Pass Through |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HTB 75-TP Datasheet |
| Internal Part Number | 898-HTB 75-TP | |
| Manufacturer Lead time | 6-8 weeks | |
| 지위 | New & Unused, Original Sealed | |
| Standard Package | 1 | |
| Category | Sensors, Transducers | |
| Family | Current Transducers | |
| Manufacturer | LEM USA Inc. | |
| Series | HTB | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| For Measuring | AC/DC | |
| Sensor Type | Hall Effect, Open Loop | |
| Current - Sensing | 75A | |
| Number of Channels | 1 | |
| Output | Ratiometric, Voltage | |
| Sensitivity | - | |
| Frequency | DC ~ 50kHz | |
| Linearity | ±1% | |
| Accuracy | ±1% | |
| Voltage - Supply | ±12 V ~ 15 V | |
| Response Time | 3µs | |
| Current - Supply (Max) | 15mA | |
| Operating Temperature | -40°C ~ 80°C | |
| Polarization | Bidirectional | |
| Mounting Type | Through Hole | |
| Package / Case | Module, Single Pass Through | |
| 무게 | 0.001 KG | |
| 신청 | Email for details | |
| Replacement Part | HTB 75-TP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HTB 75-TP is in stock for immediate shipping now. We are the distributor of LEM USA Inc. all series components. The condition of HTB 75-TP is new and unused, you can buy HTB 75-TP LEM USA Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HTB 75-TP.
